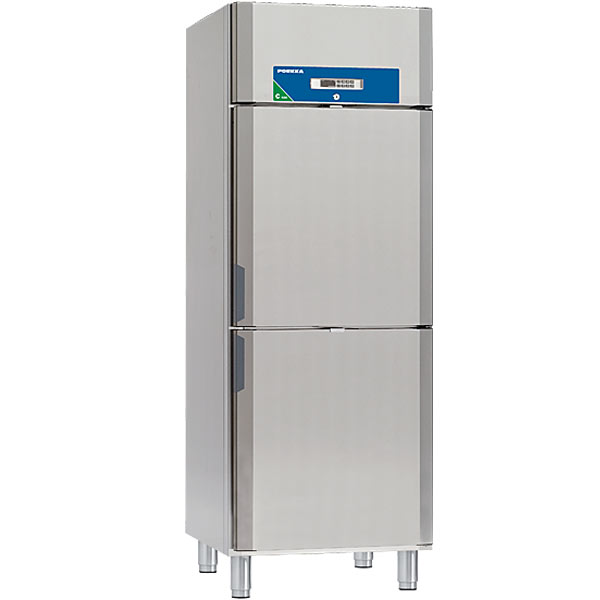

Future E M722-2 two-door medium temperature cabinet

Energy efficiency class D
Energy efficiency index 74,0
Energy Consumption (kWh/Year) 984
Net Volume (litres) 453
Climate class 4
Operating Temperature -5…+12 °C
Amb. Temperature +5…+38 °C
Width (mm) 730
Depth (mm) 800
Hight (mm) 2030
Hight with short legs (mm) 1970
Hight with castors (mm) 1995
Internal widht (mm) 610
Internal depth (mm) 660
Internal hight (mm) 1430
Shelves (pcs) 4
Size of the shelves (width x depth mm) 530 x 650
Gross weight (kg) 150
Connection power (W) 418
Connection power CC (W) 561
Voltage 230V/50Hz
Defrost Hotgas
Refrigerant (g)/GWP R290/130 g (GWP 3)

Description

Future E M722-2  is two-door commercial cabinet for medium temperature products like fish or meat. Cabinets are designed to operate using the latest hydrocarbon energy efficient refrigerant R290. Use in professional kitchens and food preparation and storage areas. Future E 722-2 accept GN 2/1 shelves or containers in the depth.

Cabinets are supplied with a choice of legs or castors, easy to change pull out / push-in door gaskets and adjustable four tier shelving which is fitted with ant-tilt supports to avoid accidental spillages.

Every care has also been taken to ensure that high hygiene levels can be maintained, all shelving and pilasters can be removed by hand and rounded corners and one piece-dished floor allows for easy deep cleaning.

External finish has a choice of stainless steel AISI 304 or white polyester coated sheet steel, in every model the internal surfaces are produced from AISI 304 grade stainless steel.

Features

• Digital temperature display with built-in microprocessor controller
• Keyboard tamper protection
• Recording of max./min. temperature
• Visual and audible high/low temperature alarm
• Door open alarm
• Probe failure alarm
• Exterior/Interior finish in stainless steel grade AISI 304
• Insulation with high density HCF free polyurethane
• 4 pcs wire shelves, powder paint coating, adjustable in increments of 30 mm
• 4 pairs anti-tilt stainless steel shelf supports
• Door equipped with lock, magnetic doors gasket and heavy-duty spring hinges, 90 ° dwell open
• Efficient and energy saving refrigerant system
• Stainless steel legs, height adjustable from 130 mm to 205 mm

Optional equipment

• Depending on model external surfaces available with white polyester coated (food save) sheet steel
• Also available for connection to a central cooling refrigeration system
• Extra shelves as required
• Bakery shelves
• Castors 2 of which are lockable
• Shorter stainless steel legs, adjustable from 70 mm to 105 mm
• Foot pedal door opener
• Electrical supply 230 V / 60 Hz
