Porkka Bar 550 Counters for Beverages

Porkka Bar Line 550 -series of counters are ideal for the storage and serving of beverages at optimum temperature for customer satisfaction.

Counters are manufactured from quality components they are durable and long lasting, naturally, the counters are supplied ready for the usage and benefit from stainless steel bodies both internally and externally.

Pre-configure your counter

There are multiple variations of CL-GNH –models. You can design your counter with the web application (requires Adobe Flash). To see more information on available variations, please check the tab “available modules”.



Didn’t find what You are looking for?

Do you want special configuration to fulfill your needs? Please, go to contact center page and send an e-mail to your local specialist.



Bar 550 counters can be supplied in various formats with either doors or drawers, chilled wells, ice bins or wells for bottle storage. All are designed to speed service at point of sales.

Glass doors either hinged or sliding can also be fitted to make an attractive point of sale merchandiser.


  • With environmental friendly and energy efficient refrigerant R290
  • Digital temperature display with built-in microprocessor controller
  • Recording of max./min. temperature
  • Visual high/low temperature alarm
  • Probe failure alarm
  • Blocked condenser / high ambient temperature alarm
  • Exterior / Interior finish in stainless steel
  • Insulation with high density HFC-free polyurethane
  • Glass door or glass sliding door with pull-out crate shelves
  • Module with 2 drawers equipped with magnetic gasket
  • Efficient and energy saving, hermetic air cooled HFC-freerefrigerant system
  • Slid-in/out refrigeration cassette (by hand) for easy servicing
  • Built-in washable condenser air filter
  • Lighting behind the glass doors
  • Stainless steel legs, height adjustable(-5mm to +65 mm)
  • Central locking system
  • Electrical supply 230V/50Hz

Optional Features

  • Also available for connection to a central cooling refrigeration system
  • Shorter, adjustable stainless steel legs for a counter height of 825 mm
  • Special table tops
  • Heat treated wooden packaging

Technical Specification

B55 860 B55 1260 B55 1660 B55 2060
Operating Temperature +5…+15 °C +5…+15 °C +5…+15 °C +5…+15 °C
Amb. Temperature +5…+25 °C +5…+25 °C +5…+25 °C +5…+25 °C
Width (mm) 860 1260 1660 2060
Depth (mm) 550 550 550 550
Height (mm) 900 900 900 900
Height with short legs (mm) 850 850 850 850
Gross weight (kg) 99 134 167 200
Connection power (kw) 0.25 0.25 0.25 0.25
Voltage 230V/50Hz 230V/50Hz 230V/50Hz 230V/50Hz
Defrost Air Air Air Air
Refrigerant (g)/GWP R290/90 g (GWP 3) R290/90 g (GWP 3) R290/90 g (GWP 3) R290/90 g (GWP 3)

Available Modules

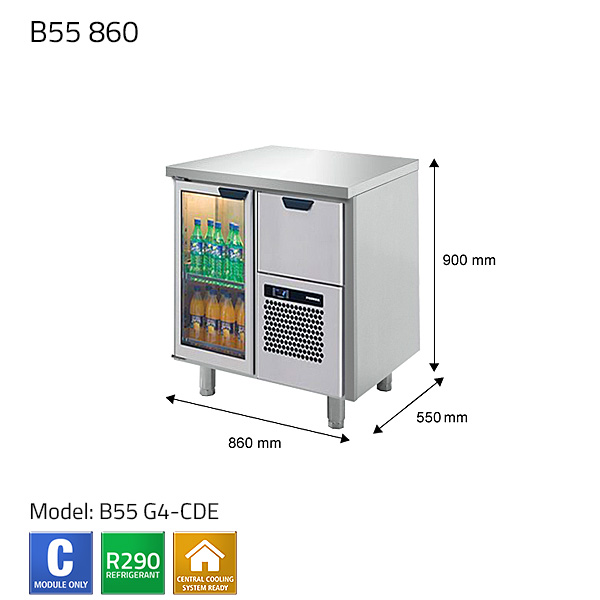

Module G4 Module glass door Glass door with light and 2 drawer shelves for bottles

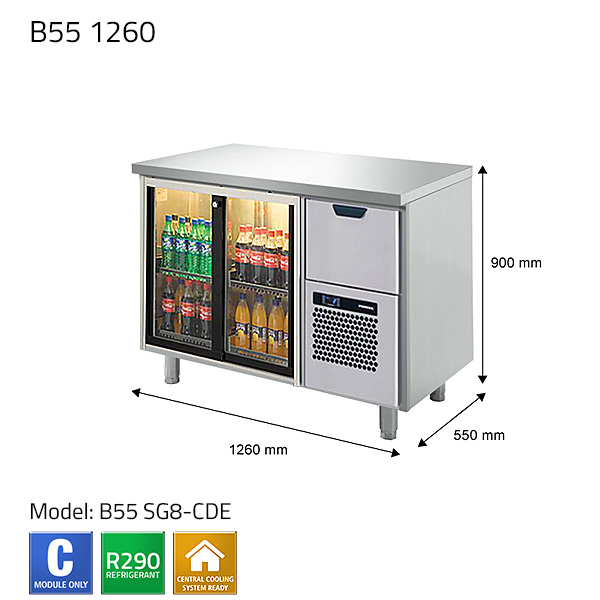

Module G8 Module sliding glass doors Sliding glass doors with 2 x 400 mm wide glass doors, light and 2 drawer shelves for bottles

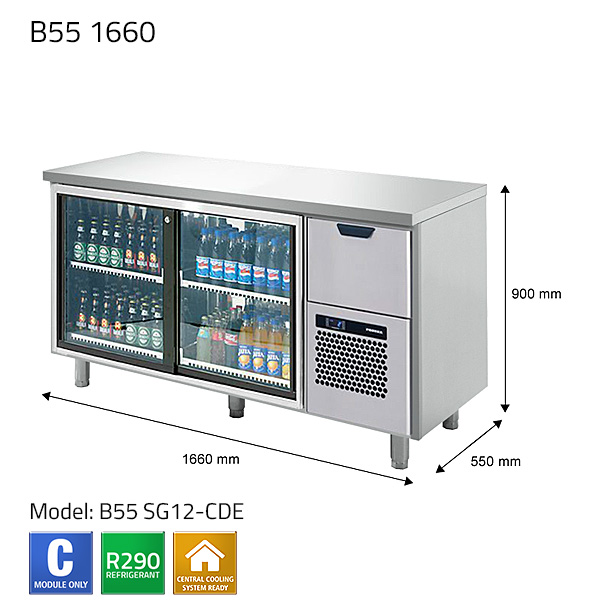

Module G12 Module sliding glass doors Sliding glass doors with 2 x 600 mm wide glass doors, light and 2 drawer shelves for bottles
Module D4 Module with door Solid door with 2 shelves

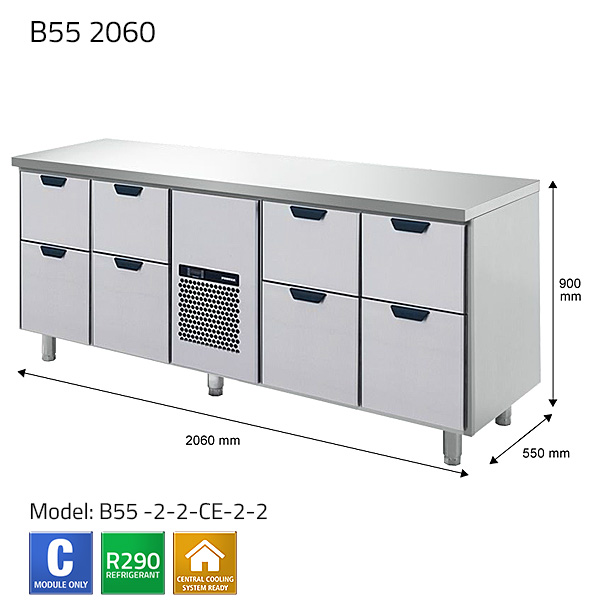

Module 2 Module with 2 drawers 2 drawers for crates
Module CE Refrigeration unit CE without drawer with ECO refrigerant R290  +2…+15 °C
Module CDE Refrigeration unit CDE with a drawer and Eco friendly refrigerant R290  +2…+15 °C

Neutral Modules

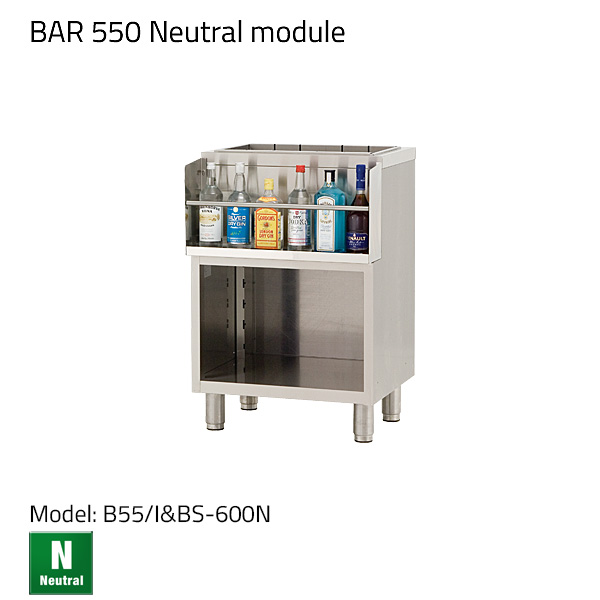

Module I&BS Ice/Bottle sink units 400, 600, 800 mm

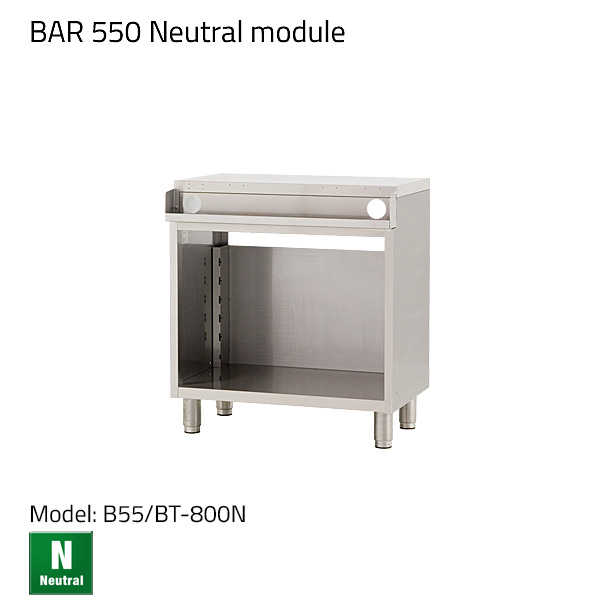

Module BT Beer tap unitsCrate units 400, 600, 800 mm

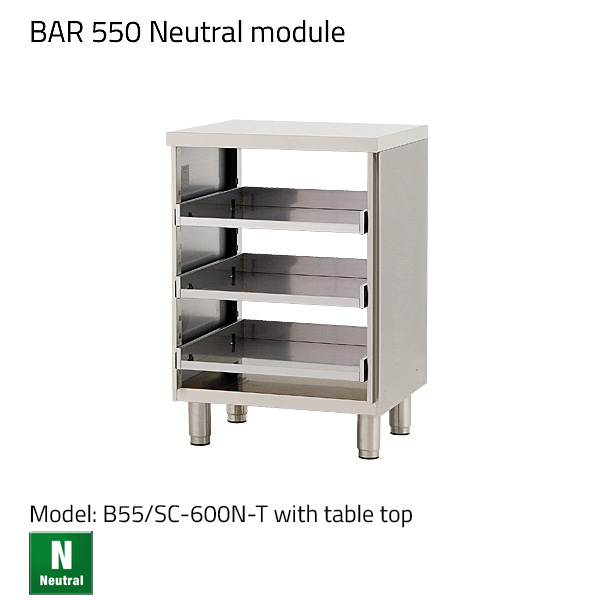

Module SC Solid door with 2 shelves 600 mm with top, or without top

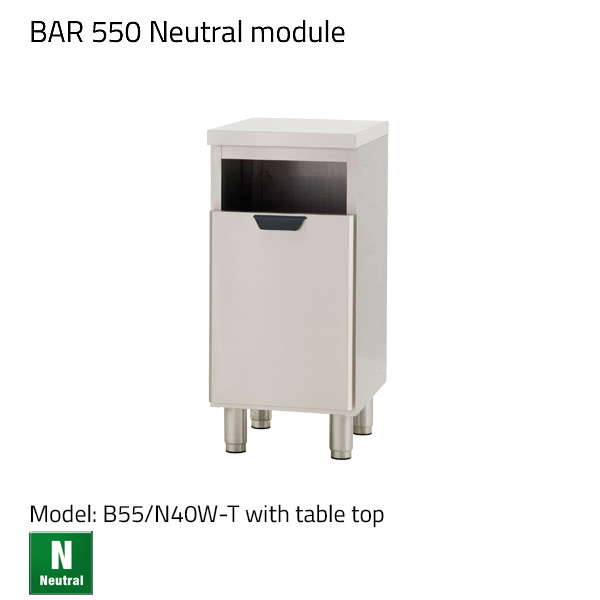

Module N40W Trash units 400 mm with top, or without top


 Porkka Counters (PDF)
