Porkka Cold Line Counters (low model) for Food Storage and Preparation

Porkka CL-GNL counters are designed to be used as preparation stations. GNL work tables are low level and can accept griddles or other food cooking equipment placed on top of the counter as well as acting as refrigerated food storage units.

Counters are manufactured from quality components they are durable and long lasting, naturally, the counters are supplied ready for the usage and benefit from stainless steel bodies both internally and externally.

Pre-configure your counter

There are multiple variations of CL-GNL –models. You can design your counter with the web application (requires Adobe Flash). To see more information on available variations, please check the tab “available modules”.

COUNTER CONFIGURATOR (Flash)



Didn’t find what You are looking for?

Do you want special configuration to fulfill your needs? Please, go to contact center page and send an e-mail to your local specialist.

CONTACT CENTER >
SKU: CL-GNL Categories: , ,

Description

Designed to be used as preparation stations GNL work tables are low level and can accept griddles or other food cooking equipment placed on top of the counter as well as acting as refrigerated food storage units.

Manufactured from quality components they are durable and long lasting, naturally, the counters are supplied ready for the usage and benefit from stainless steel  bodies both internally and externally.

Each drawer is fitted with telescopic Slidees and the base is supplied with legs or optional castors.

The equipment also benefits from innovative design features such as pull out refrigeration cassettes for simple maintenance or repair. Each drawer is able to accept GN1/1 trays or pans or smaller multiples to suit the application.

Features

  • Environmental friendly and energy efficient refrigerant R290
  • Digital temperature display with built-in microprocessor controller
  • Recording of max./min. temperature
  • Visual high/low temperature alarm
  • Probe failure alarm
  • Blocked condenser / high ambient temperature alarm
  • Exterior / Interior finish in stainless steel
  • Insulation with high density HFC-free polyurethane
  • Drawers equipped heavy-duty telescopic runners
  • Efficient and energy saving, hermetic air cooled HFC-free refrigeration systems
  • Slide-in/out refrigeration cassette (by hand) for easy servicing
  • Built-in washable condenser air filter
  • Stainless steel legs, height adjustable (-5mm to +65 mm)
  • Electrical supply 230V/50Hz

Optional Features

  • Also available for connection to a central cooling refrigeration system
  • Module with 1, 2 or 3 drawers with handle and magnetic gasket
  • Module 2 drawer inner depth 150 mm
  • Shorter, adjustable stainless steel legs for a counter height of 580 mm
  • Special table tops, please see page 90
  • Heat treated wooden packaging

Technical Specification

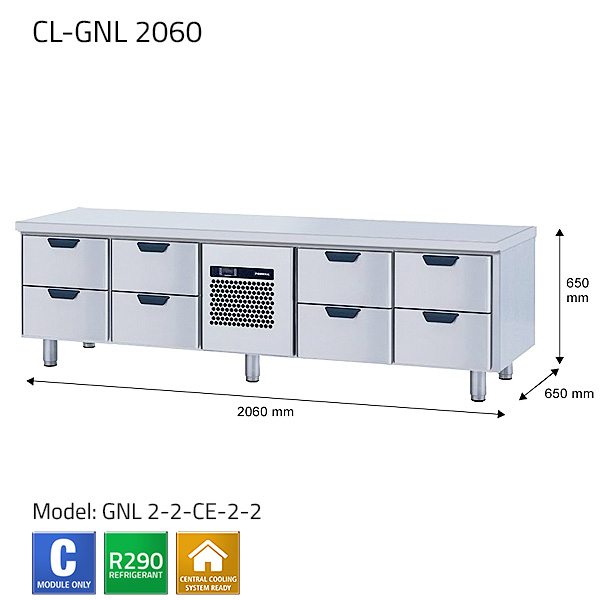

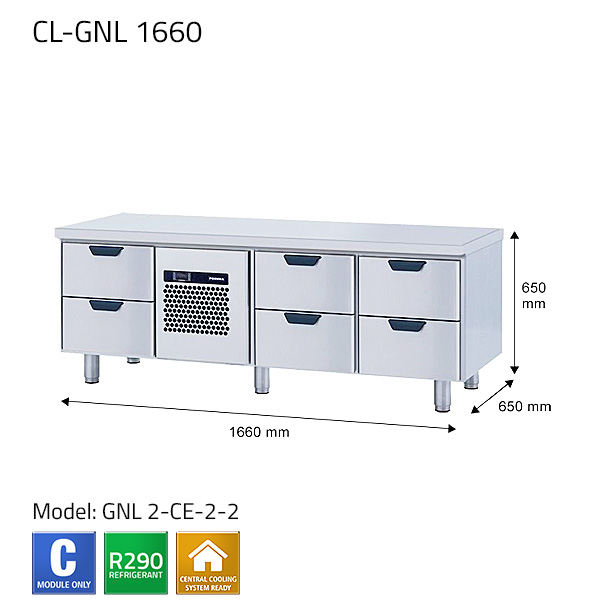

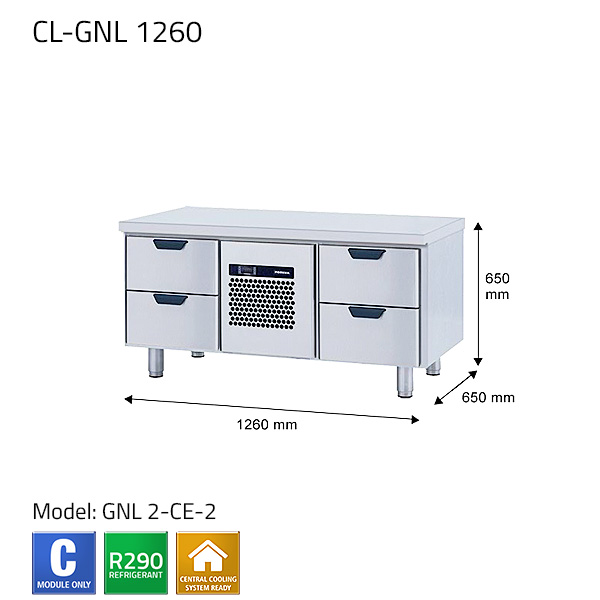

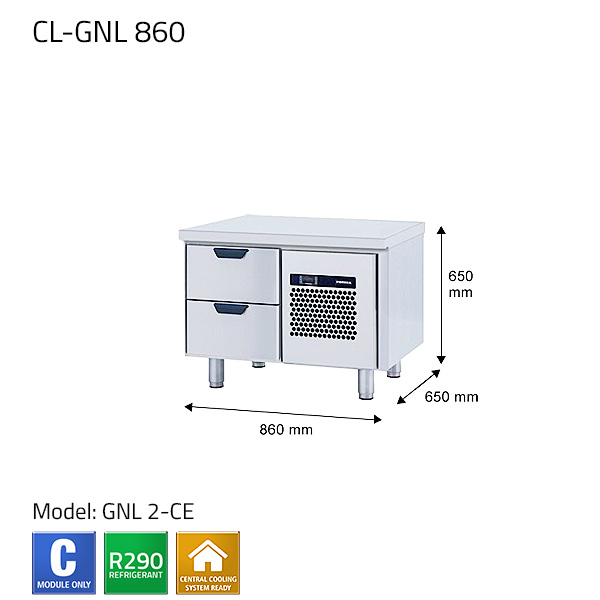

Cold line R290 CL-GNL C860 CL-GNL C1260 CL-GNL C1660 CL-GNL C2060
Energy efficiency class C C C,D* D
Energy efficiency index 36,7-38,7* 43,4-47,9* 47,7-54,5* 51,3-61,0*
Energy Consumption (kWh/Year) 724 937 1116 1296
Net Volume EN16825 (litres) 32,6-71,9* 65,2-143,8* 97,8-215,7* 130,4-287,6*
Climate class 4 4 4 4
Operating Temperature +2…+15 °C +2…+15 °C +2…+15 °C +2…+15 °C
Amb. Temperature +5…+25 °C +5…+25 °C +5…+25 °C +5…+25 °C
Width (mm) 860 1260 1660 2060
Depth (mm) 650 650 650 650
Height (mm) 650 650 650 650
Height with short legs (mm) 600 600 60 600
Gross weight (kg) 87 114 144 180
Connection power (kw) 0.25 0.25 0.25 0.35
Voltage 230V/50Hz 230V/50Hz 230V/50Hz 230V/50Hz
Defrost Air Air Air Air
Refrigerant (g)/GWP R290/90 g (GWP 3) R290/90 g (GWP 3) R290/90 g (GWP 3) R290/90 g (GWP 3)


* Value depending on a configuration|

Available Modules

Module 1 Module with door Solid door with 1 shelf
Module 2 Module with 2 drawers 2 drawers with telescopic rails for GN-containers (150 mm deep)
Module 3 Module with 3 drawers 3 drawers with telescopic rails for GN-containers (1 x 100 mm and 1 x 150 mm deep)
Module CE Refrigeration unit CE without drawer with Eco refrigerant R290  +2…+15 °C

Brochures

 Porkka Counters (PDF)
