Porkka Display Line Self-Service Refrigerated Counters

Description

The innovative sales merchandiser with unique storage counter

The ‘Display Line’ is an attractive impulse sales merchandiser. Display Line can be placed in a food serving lines or cafeterias and can store and display sandwiches, snacks, and beverages in temperature controlled conditions that will encourage potential customers to buy.

The Display Line cabinets fulfill tight European standards for cold storage of food. The brilliantly designed and carefully tested Display Line product series is for selling and storing of pre-cooled products. Display Line cabinets combine user-friendliness, easiness of maintenance and cleaning to reliability and durability. Your products are attractively and temptingly displayed, always fresh and ready to be served.



Features

  • Digital temperature display with built-in microprocessor controller
  • Recording of max./min. temperature
  • Visual high/low temperature alarm
  • Probe failure alarm
  • Blocked condenser/high ambient temperature alarm
  • Exterior/Interior finish in stainless steelgrade AISI 304
  • Insulation with high density HCF free polyurethane
  • Efficient and energy saving, hermetic air cooled HCF refrigerant system
  • Slide-in/out refrigeration cassette (by hand) for easy servicing
  • Built-in washable condenser air filter
  • Stainless steel legs, height adjustable -5mm to +65 mm
  • Electrical supply 230V/50Hz



Display/Storage Section Features

  • Self service version with liftable flaps on the customers side
  • Rear service version with a fixed sneeze guard on the customers side
  • Glass sliding doors with lock for re-stocking on the vendor’s side for self service & rear service versions
  • Self service version with 2-sided self-service liftable flaps
  • 2 or 3 LED light illuminated glass/stainless steel shelves (top shelf of the tree-shelf model is not refrigerated )
  • LED light illuminated GN1/1 dimensioned 210 mm deep stainless steel forced air refrigerated bottle well
  • Stainless steel bottom plates for the bottle well, adjustable to different levels and angles
  • Forced air ventilation to ensure even temperatures

Storage section

  • Door equipped with magnetic gasket and heavy-duty hinges
  • 1 pc GN 1/1 powder coated, galvanized steel wire shelf, adjustable in increments of 70 mm



Product Range

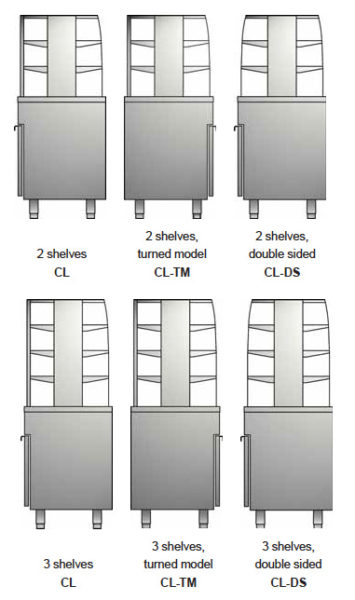

Model Shelving Model Variants
DL 2 TL CL SM BH DS TM
Display Line Two shelves

3

Three shelves

Non refrigerated table top display with liftable flaps Self-service model with liftable front flaps on customers side, glass sliding doors on vendors side with additional liftable flaps on´the bottle well. Refrigerated showcase area, bottle well and storage section Service model with glass front on customers side, glass sliding doors on vendors side. Refrigerated showcase area, bottle well and storage section Self-service model with liftable front flaps on customers side, glass sliding doors on vendors side with additional liftable flaps on´the bottle well. Refrigerated showcase area, bottle well and storage section Self-service model (double sided) with liftable flaps on both sides. Refrigerated showcase area, bottle well and storage section Turned display area with liftable flaps above storage section. Refrigerated showcase area, bottle well and storage Turned display area with liftable flaps above storage section. Refrigerated showcase area, bottle well and storage section

Technical Spesification

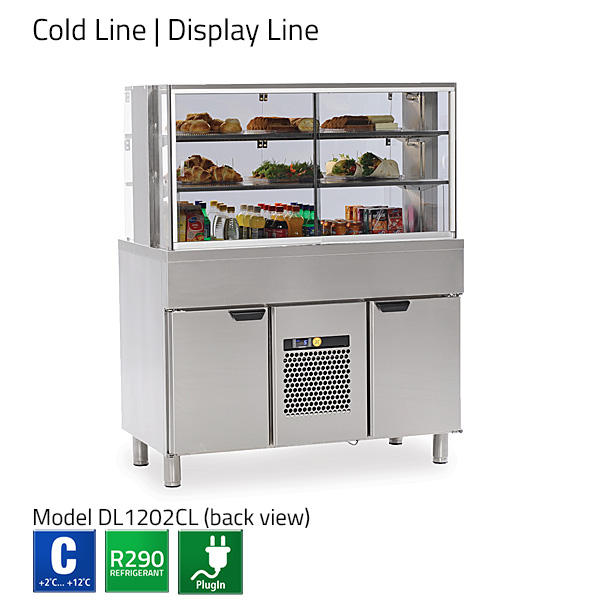

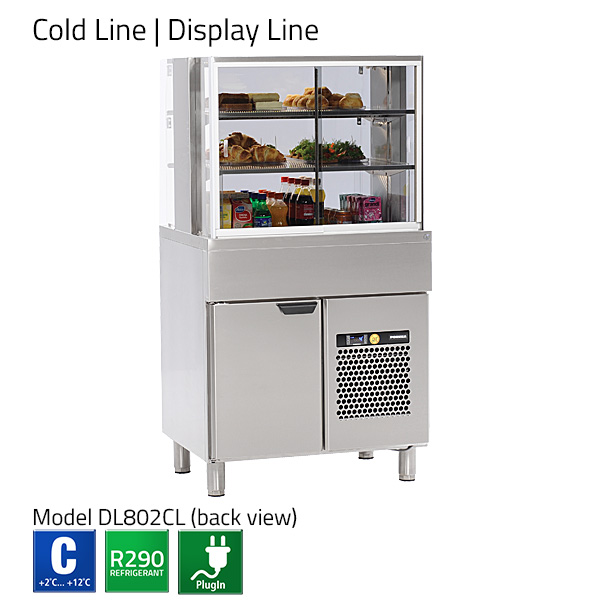

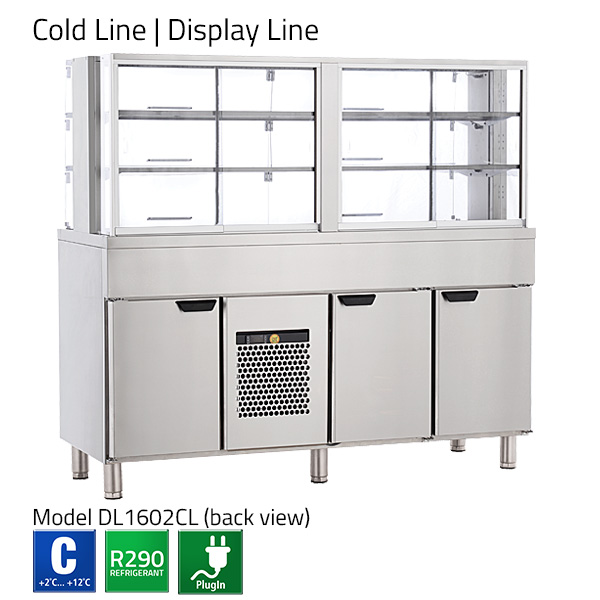

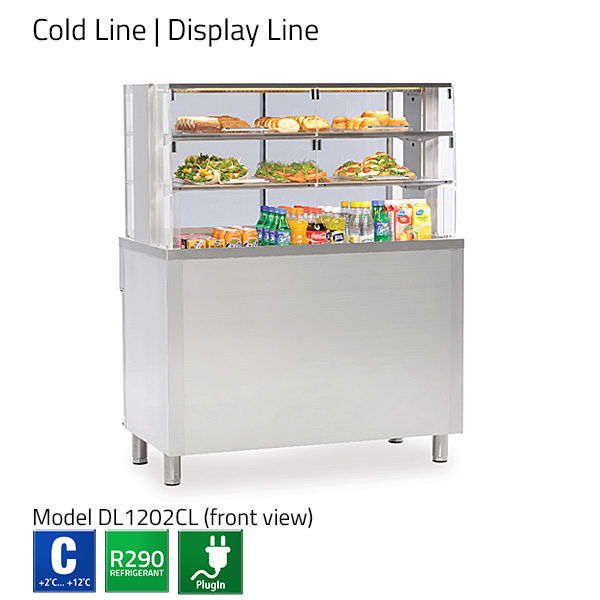

Cold Line DL802CL(E) DL803CL(E) DL1202CL(E) DL1203CL(E) DL1602CL(E) DL1603CL(E) DL802TL DL803TL DL1202TL DL1203TL
Length (mm) 800 800 1200 1200 1600 1600 800 800 1200 1200
Width (mm) 650 650 650 650 650 650 650 650 650 650
Height (mm) 1500 1690 1500 1690 1500 1690 600 790 600 790
Connection Power (kW)

230V/50Hz

0.45 0.45 0.45 0.45 0.75 0.75 0.015 0.02 0.03 0.04
Temperature (ºC) Display Area * +6…+15 +6…+15 +6…+15 +6…+15 +6…+15 +6…+15
Storage Section * +4…+12 +4…+12 +4…+12 +4…+12 +4…+12 +4…+12

(E) = available with R290 refrigerant.
* Display area temperature is controlled by the temperature setting of the storage section.
