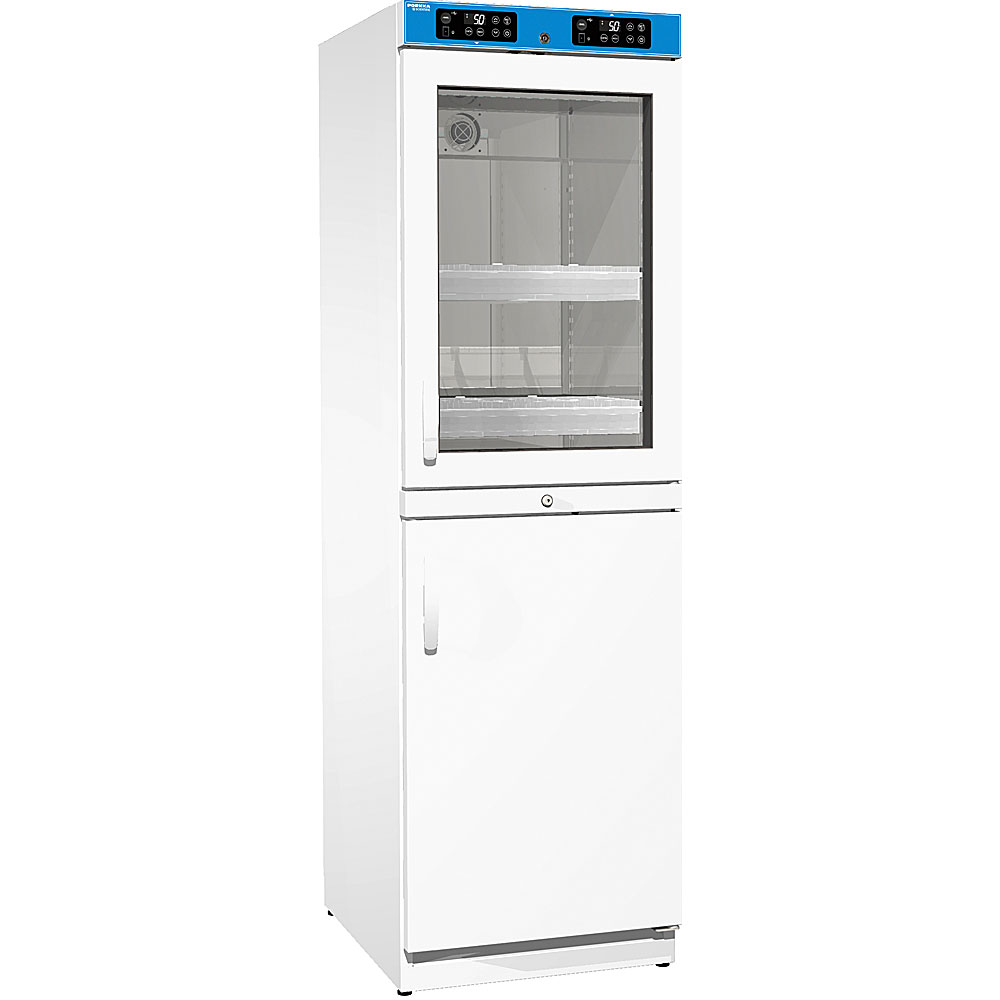

Porkka FP MEDLAB C GD / F 400 Spark Proof Laboratory Chiller/Freezer

Technical data

Upper
C GD
Lower
F
External dimensions: Width (mm) 610
Note! ** Depth (mm) 746
• Height adjustable thumb screw legs (standard) Height (mm) 2000
• Height adjustable stainless steel legs Height (mm) 2150
• Castors (lockable front castors) Height (mm) 2095
Internal dimensions: Width (mm) 498
Depth (mm) 538 538
Front/back Height (mm) 779 711/565
Volume (measured on a stainless-steel shelf according to DIN standard) Net (litres) 180 135
Gross (litres) 219 216
Weight Net (kg) 142
Package weight Gross (kg) 152
Package size Width (mm) 700
Depth (mm) 810
• Height adjustable thumb screw legs Height (mm) 2140
• Height adjustable stainless steel legs Height (mm) 2300
Ambient temperature ºC +5…+25
Operating temperature ºC ºC +2…+15 -15…-25
Temperature accuracy ºC DIN58345
Refrigerant R600a (g) 40 75
Connection Power W 250
Fuse Slow (A) 10
Voltage V 230/50/60 Hz

Defrost 1. Air 2. Hot gas 3. Electric

2.
autom.
3. auto./
man.

Ensure that there is sufficient air circulation around the device so that condensate air can freely enter the environment

Description

FP MEDLAB 400 -spark-proof laboratory refrigerators and freezers

FP MEDLAB 400 and FP MED SAVE 400 cabinet series has a wide selection of refrigeration, freezing and combination cabinets. The products are suitable for storing medications and test samples, as well as for storage of various substances and materials, which require a steady storage temperature and spark protection.

The products are suitable for storing medications and test samples, as well as for storage of various substances and materials, which require a steady storage temperature and spark protection. FP MEDLAB 400 refrigeration cabinet is also available with a glass door.

The features of FP MEDLAB 400 cabinet series are in compliance with the requirements of the future, and the collection is in compliance with the requirements of the new F-Gas Regulation (No 517/2014).

FP MEDLAB 400 series has paid special attention to the safe storing of the products, and the storage temperatures are in compliance with the requirements of DIN 58345. All the cabinets come with anti-freeze protection (C-models) potential-free alarm tip information for the building’s control system.

The cabinets have an internal functioning control system, which will alert visually on the screen, if necessary, and acoustically with the alarm tone of all the deviations related to the use or operation of the cabinet.

FP MEDLAB 400 cabinet series, ease of use means a clear and easy-to-use control unit, stainless steel pull-out shelves with flat surfaces that are easy to clean, a low noise level and low energy consumption.

Fan assisted air distribution ensures accurate product storage temperatures and product safety is assured by product safety alarm features.

The characteristics of the product can be complemented by control unit with temperature recording meeting the requirements of refrigeration for drugs according to standard DIN58345.

Shelves and/or drawers

Upper Lower

Drawers: width 460 mm, depth 253 mm (amount standard/maximum) (pcs)

2 2

Features

  • Excellent temperature uniformity (± 1°C) measured with a weight of 25 g (DIN 58345)
  • Low noise level, under 45 dB(A)
  • Bacteria-free automatic evaporation for condensation water
  • Bacterial-free door handle
  • Control unit with clear numeric display for temperature and other functions
  • Key lock on the control unit
  • Recording of maximum and minimum temperature
  • Visual and audible high/low temperature alarm
  • Door switch for fan control and door open-alarms
  • Probe failure alarm
  • Anti-freeze function (C models)
  • Potential-free alarm terminal strip and relay
  • Readiness for RS485 adapter for computer connection
  • ø 8 mm sleeved access port for additional probe
  • Ability to connect the device to external property control
  • fan assisted air distribution
  • Molded eco-friendly polyurethane insulated frame. The insulation thickness is 50-60 mm.
  • External finish has a white polyester coated sheet steel (visible finish)
  • Interior finish in stainless steel
  • Stainless steel shelve which are adjustable in increments of 30 mm or drawer + stainless steel shelf combination
  • Abloy lock is placed in front panel for easy maintenance (Abloy Sentry key)
  • The self-closing door has a sturdy molded handle, magnetic seal, and durable hinges. The door remains open at a 90 degree angle
  • Automatic and manual defrost
  • Efficient, environmental friendly, energy saving refrigerant system R600
  • Electrical supply 230V / 50/60Hz

Accessories

  • Plastic drawer with dividers
  • LED light (standard in GD models)
  • Lock alternatives: Assa, iLOQ, Ruko (Abloy as a standard)
  • Stand h=180 mm
  • Real-time temperature recording with MED SAVE control unit
  • 50 ml bottle for temperature sensor inside the cabinet
  • Potential-free alarm terminal strip and relay
  • Anti-freeze protection system

Downloads

TECHNICAL DATA, MED / MEDLAB  (062020 EN)
MANUAL,_MED / MEDLAB_(092020b_EN)
