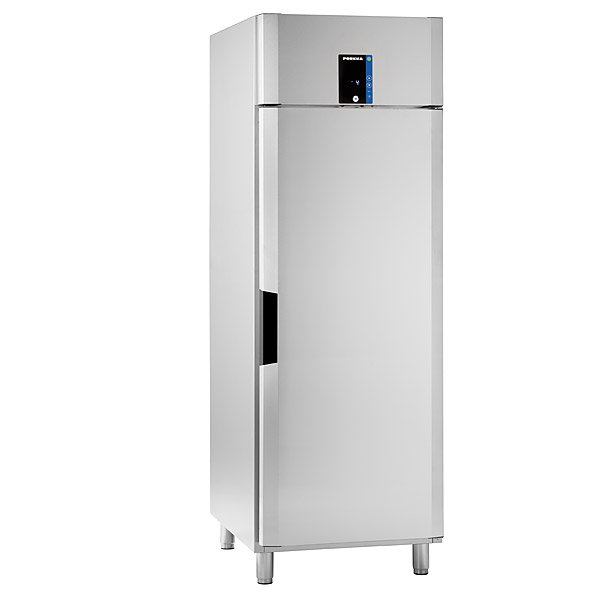

Porkka Inventus C7e Class A Chiller

INVENTUS C7e –CHILLER
Energy efficiency class A
Energy efficiency index (EEI) 23,16
Energy consumption, 24h (E 24h) kWh 0,88
Annual energy consumption kWh 321
Electricity cost in 8 years (0,20/kWh) EUR 514
Volume, gross Liter 609
Volume, net Liter 473
Climate class 4
This appliance is intended for use in ambient temperatures up to 30 °C
External width mm 730
External depth mm 870
External height/standard legs mm 2100
External height/low legs mm 2050
External height/castors mm 2080
Internal width mm 534
Internal depth mm 675
Internal height mm 1485
Weight, gross kg 162
Weight, net kg 152
Shelves (4 pcs), width mm 531
Shelves, depth mm 660
Maximum load / shelf kg 70
Maximum load / cabinet kg 280
Ambient temperature range °C +10…+30
Storage temperature range °C +1…+12
Nominal power W 200
Cord length m 3
Refrigerant, R290 g 110
Fuse, slow A 10
Voltage/Frequency V/Hz 230/50
Sound pressure level (1m) dB(A) < 50
Defrost method Off-cycle

Description

New Inventus model for energy efficiency in class A

Inventus “e” models provide an excellent solution for heavy use in demanding conditions – for professional kitchens, hotels, cafes, shops and similar.

Inventus C7e and C8e are new energy-efficient Class A refrigerators. Like all products in the Inventus cabinet family, they are made of high-quality and long-lasting components.

Inventus C 7e and C 8e allow for better energy efficiency when needed. It offers state-of-the-art usability as well as better hygiene and safety. Flexibility and ease are evident in everything. Inventus e-models, like the entire Inventus product family, are designed and manufactured in an environmentally friendly way. It is a future-proof solution where professionalism is visible both as a whole and in small details.

Inventus C7e and C8e save energy and money

Table 1 below shows how much money you will save when using the e-model cabinet. Inventus C 7e and C 8e are suitable for applications where better energy efficiency is required. For example, the C 7e consumes only 0.88 kWh / day of electricity (test according to EN 16825). Both the C 7e and C 8e are listed on the website www.topten.eu for energy consumption in category A. Check if your country is covered by the credit system.

Features

  • Control unit with clear numeric display for temperature and other functions
  • Key lock
  • Energy class A according to the Ecodesign Directive (Directive 2009/125 / EC)
  • Can be connected to a remote system via an optional adapter
  • Minimum and maximum temperature recording
  • Visual “high temperature” and “low temperature” alarm
  • Visual alarm of a broken sensor
  • Visual alarm of a clogged condenser
  • Door switch for luminaire and fan control and Door open alarm
  • The outer surface is made of stainless steel, the inner surface is made of stainless steel (AISI 304 austenitic stainless steel)
  • Molded environmentally friendly HFC-free polyurethane insulation
  • Four painted wire rack shelves, adjustable in 56 mm increments
  • Anti-tilt shelf supports
  • Lockable door, tool-free replaceable magnetic seal and durable spring hinges to keep the door open at a 90-degree angle
  • Efficient and energy-saving cooling system with R290 refrigerant
  • Stainless steel legs, adjustment range 130 mm – 205 mm
  • Power supply 230 V / 50 Hz

Additional functionalities and accessories

  • Bakery shelving system
  • Nanoksi Fotonit photocatalytic coating, a new innovative self-disinfecting solution for microbial surface protection (coming in 2021)
  • Electronic iLOQ locking system
  • Stainless steel wire shelf
  • Stainless steel panel shelf
  • Stainless steel basket shelf
  • Wheels instead of legs, two lockable wheels
  • Short legs instead of long legs, adjustment range 70 mm – 105 mm
  • Foot pedal
