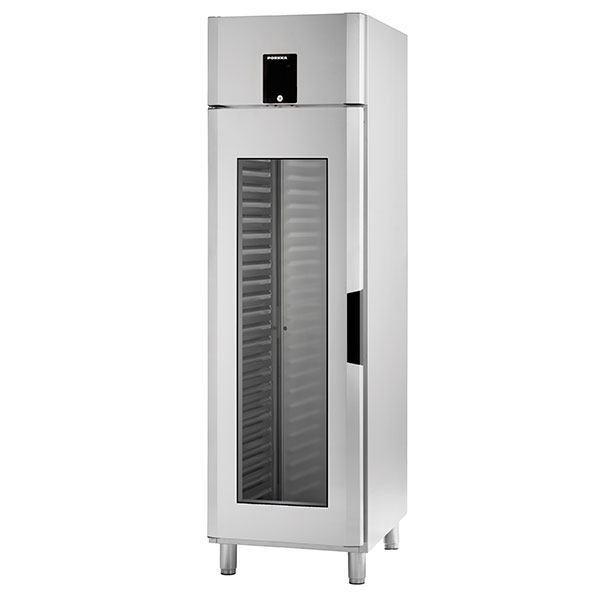

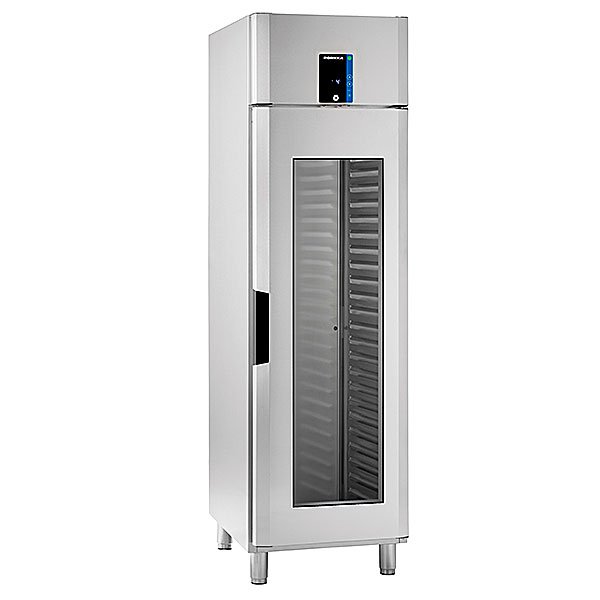

Porkka Inventus M6 GW Chiller

INVENTUS M6 GW -CHILLER
Energy efficiency class D
Energy efficiency index (EEI) 53,43
Energy consumption, 24h (E 24h) kWh 1,67
Annual energy consumption kWh 610
Electricity cost in 8 years (0,20/kWh) EUR 975
Volume, gross L 421
Volume, net L 324
Climate class 4
This appliance is intended for use in ambient temperatures up to 30 °C
External width mm 600
External depth mm 760
External height/standard legs mm 2100
External height/low legs mm 2050
External height/castors mm 2080
Internal width mm 404
Internal depth mm 610
Internal height mm 1485
Weight, gross kg 142
Weight, net kg 132
Shelves (4 pcs), width mm 400
Shelves, depth mm 600
Maximum load / shelf kg 70
Maximum load / cabinet kg 280
Ambient temperature range °C +10…+30
Storage temperature range °C -5…+12
Nominal power W 320
Refrigerant, R290 g 115
Fuse, slow A 10
Voltage/Frequency V / Hz 230/50
Defrost method Hot gas

Description

More durable and better chiller and freezer cabinet with glass windows

Inventus GW models are an excellent solution for heavy use and demanding conditions in professional kitchens, cafes, hotels, shops and similar places. Inventus GW models include chiller and freezer upright cabinets with glass windows. Like all cabinets in the Inventus product family, the Inventus GW with glass window is made of high-quality and long-lasting components. It is one example of our advanced cold storage solutions.

Inventus GW offer excellent product visibility

Inventus GW is ideal for both storage and display equipment and enables excellent end-product visibility and presentation. Thanks to the glass window and lighting, display in the store can be done professionally. It offers state-of-the-art usability as well as better hygiene and safety. Flexibility and ease are evident in everything. Inventus GW, like the entire Inventus product family, is designed and manufactured in an environmentally friendly way. It is a future-proof solution where professionalism is visible both as a whole and in small details.

Additional functionalities and accessories for  Inventus GW models

Various additional functionalities and accessories such as the Inventus bakery system or wheels instead of legs. In addition to the Inventus GW models, the Inventus product range offers solutions for many different needs. The product range covers refrigerated cabinets, freezer cabinets as well as blast chilling and blast chilling / blast freezing solutions.

Features

  • Control unit with clear numeric display temperature and other functions
  • Key lock
  • Glass window door, suitable for both as storage and display furniture
  • Can be connected to a remote system as an accessory via the available adapter
  • Minimum and maximum temperature recording
  • Visual “high temperature” and “low temperature” alarm
  • Visual alarm of a broken sensor
  • Visual alarm of a blockage from the condenser
  • Door switch for light and fan control and the Door open alarm
  • The outer surface is made of stainless steel, the inner surface is made of stainless steel (AISI 304 austenitic stainless steel)
  • Molded environmentally friendly HFC-free polyurethane insulation
  • Four painted wire rack shelves, adjustable in 56 mm increments.
  • Anti-tilt shelf supports
  • Lockable door, tool-less replaceable magnetic  seal and durable spring hinges to keep the door open at a 90-degree angle
  • Efficient and energy-saving cooling system with R290 refrigerant
  • The CC CO2 model does not include an expansion valve
  • Defrost water evaporation as standard, drainage as an accessory
  • Stainless steel legs, adjustment range 130 mm – 205 mm
  • Power supply 230 V / 50 Hz CC model 230 V / 50-60 Hz

Additional functionalities and accessories

  • Bakery shelf system (C7 and C8, M7 and M8, F7 and F8)
  • Electronic iLOQ locking system
  • Central machine connection capability also for R744 systems
  • Stainless steel wire shelf
  • Stainless steel panel shelf
  • Stainless steel basket shelf (available for C7, C8, M7, M8, F7 and F8)
  • Wheels instead of legs, two lockable
  • Short legs instead of long legs, adjustment 70 mm – 105 mm
  • Foot pedal
