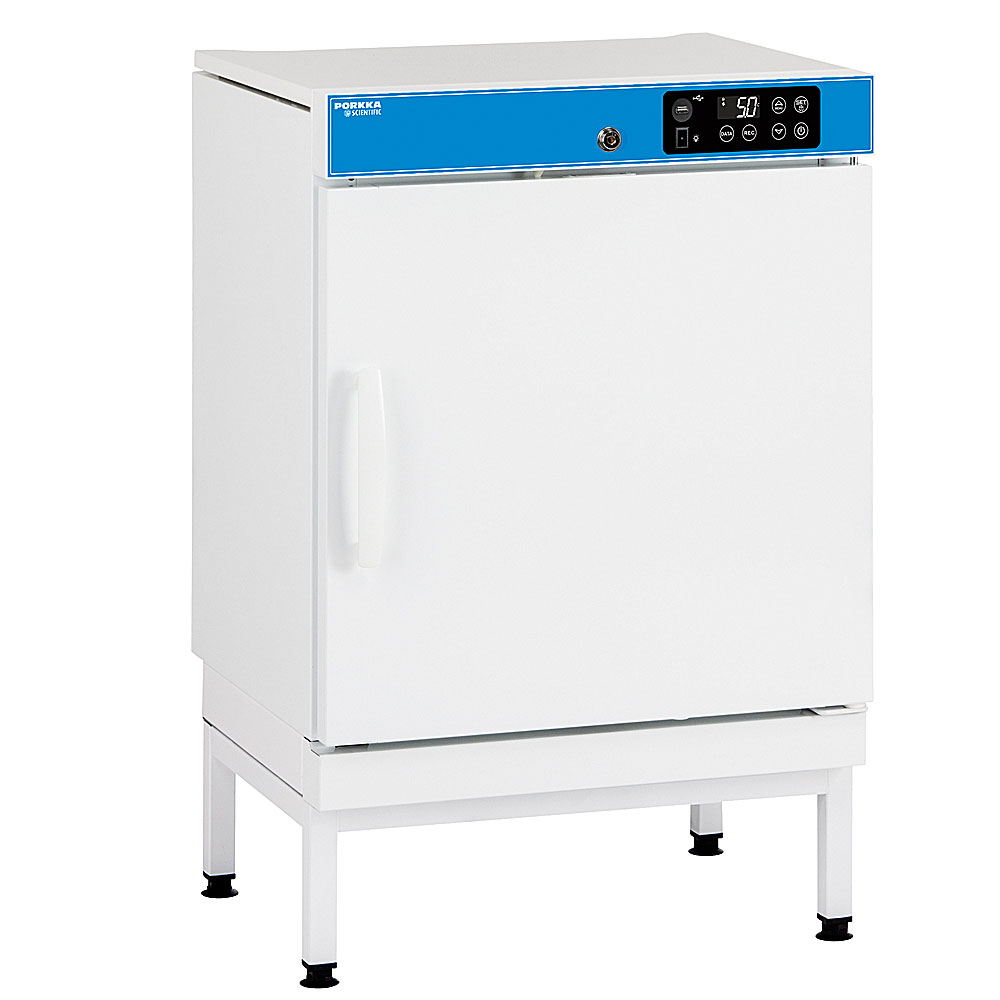

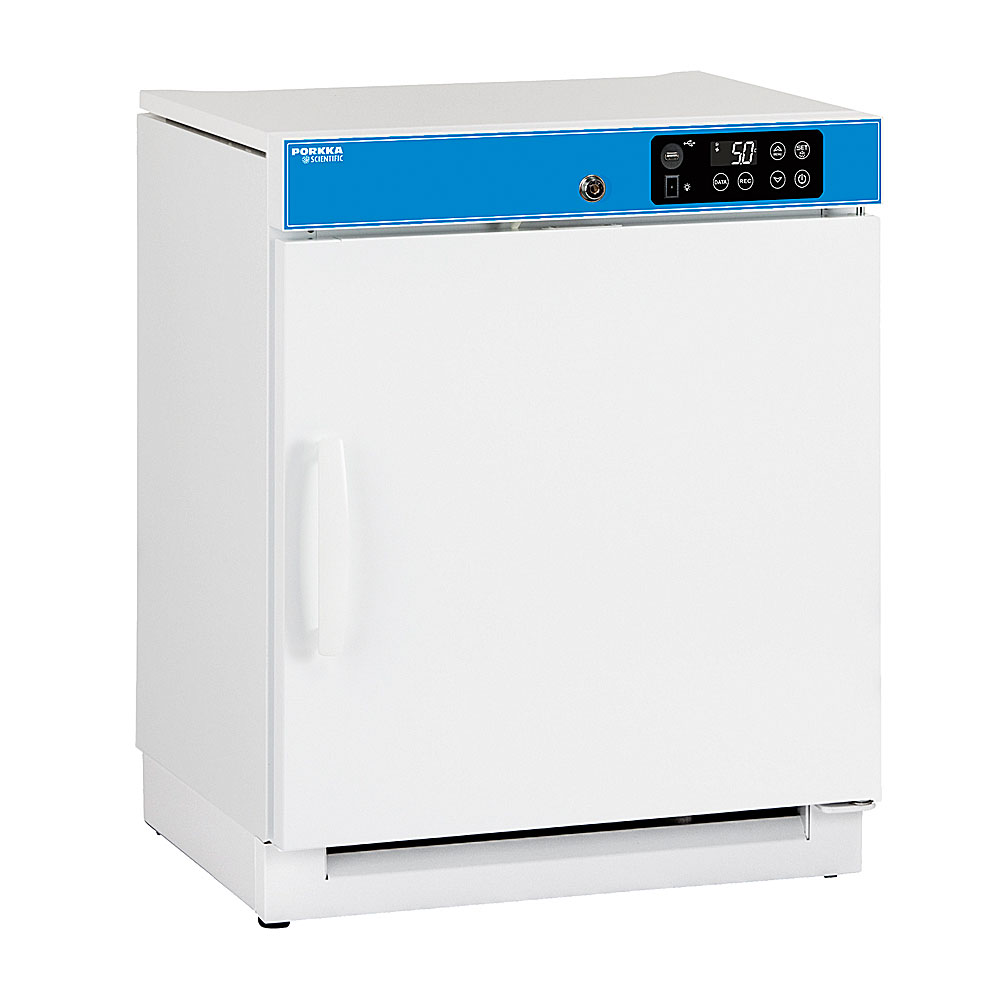

Porkka MED 80 GD Pharmaceutical Refrigerator

Technical data

External dimensions: Width (mm) 595
Note! ** Depth (mm) 500+ 30 (handle)
• Table top model without stand Height (mm) 720
• Furniture or wall mounting model without stand ** Height (mm) 720
• Under counter model with stand ** Height  (mm) 860
Internal dimensions: Width (mm) 475
Depth (mm) 339 / 206
Front / back Height (mm) 470 / 390
Volume (measured on a stainless-steel shelf according to DIN standard) Net (litres) 60
Gross (litres) 75
Inner surfaces PS polystyrene
Weight Net (kg) 49
Package weight Gross (kg) 52
Package size Width (mm) 680
Depth (mm) 600
Height (mm) 920
Sound level measured at the distance of 1m and from the height of 1.6 m dB 41
Ambient temperature ºC +5…+32
Operating temperature ºC +2…+15 +2…+15 ºC +2…+15
Temrepature accuracy ºC DIN58345
Refrigerant R600a (g) 42
Connection Power W 62
Fuse Slow (A) 10
Voltage V 230/50/60 Hz
Defrost 1. Air 2. Hot gas 3. Electric 3 Automatic

* Door shelf/drawer combination is not available in the refrigerator
** Ensure that there is sufficient air circulation around the device so that condensate air can freely enter the environment

Description

Designed to promote your product safety

Wide range of cabinets and drawer units, especially for the needs of physician’s offices, hospitals, and healthcare facilities. Lockable cabinets and drawer cabinets that are easy to clean are the ideal solutions for storing medicines.

The standard feature of all MED and MEDLAB products is an antibacterial handle (1), and an automatic condensate evaporation system (4). Antibacterial treatment of the handle and the evaporation pan includes adding a silver-based additive to their components during the manufacturing process. Thanks to such treatment the handles and evaporation pans are permanently protected against microorganisms (bacteria, fungi, mould, and even viruses).

Moreover, every MED and MEDLAB product features a counter or a hygienic cover (2). The products are designed to minimise spreading of bacteria and viruses, while eliminating the need to have the water accumulation pan emptied by the user (3).

Shelves or drawers

Full depth 1/1 glass shelf: width 475 mm, depth 260 mm (amount standard/maximum)

(pcs) 2/3
OR

Stainless steel shelf : width 475 mm, depth 330 mm (amount standard/maximum)

(pcs) 2/3
OR

Drawers: width 460 mm, depth 253 mm (amount standard/maximum) ****

(pcs) 2/3

Features

  • Excellent temperature uniformity measured with a weight of 25 g (DIN 58345)
  • Low noise level under 45 dB(A)
  • Bacteria-free automatic evaporation for condensation water
  • Bacterial-free door handle
  • Control unit with clear numeric display for temperature and other functions
  • Key lock on the control unit
  • Recording of maximum and minimum temperature
  • Visual and audible high/low temperature alarm
  • Door switch for fan control and door open-alarms
  • Probe failure alarm
  • Readiness for RS485 adapter for computer connection
  • Ability to connect the device to external property control
  • ø 8 mm sleeved access port for additional probe
  • fan assisted air distribution.
  • Molded eco-friendly polyurethane insulated frame. The insulation thickness is 50 mm
  • External finish has a white polyester coated sheet steel
  • Interior finish in white vacuum foamed polystyrene and white polyester coated sheet steel
  • Glass shelves which are adjustable in increments of 36 mm. The door has easily removable door shelves (not in models MED 320 and GD)
  • Abloy lock is placed in front panel for easy maintenance (Abloy Sentry key)
  • The self-closing door has a sturdy molded handle, magnetic seal, and durable hinges. The door remains open at a 90 degree angle
  • Automatic defrost
  • Efficient, environmental friendly, energy saving refrigerant system R600
  • Electrical supply 230V / 50/60Hz

Accessories

  • Plastic drawer with dividers
  • Stainless steel shelves
  • Different shelf sizes
  • Internal LED light (as a standard in GD models)
  • Lock alternatives: Assa, iLOQ, Ruko (Abloy as a standard)
  • Basin H=180 mm
  • Potential-free alarm terminal strip and relay
  • Anti-freeze protection system

Downloads

TECHNICAL DATA, MED / MEDLAB  (062020 EN)
MANUAL,_MED / MEDLAB_(092020b_EN)
