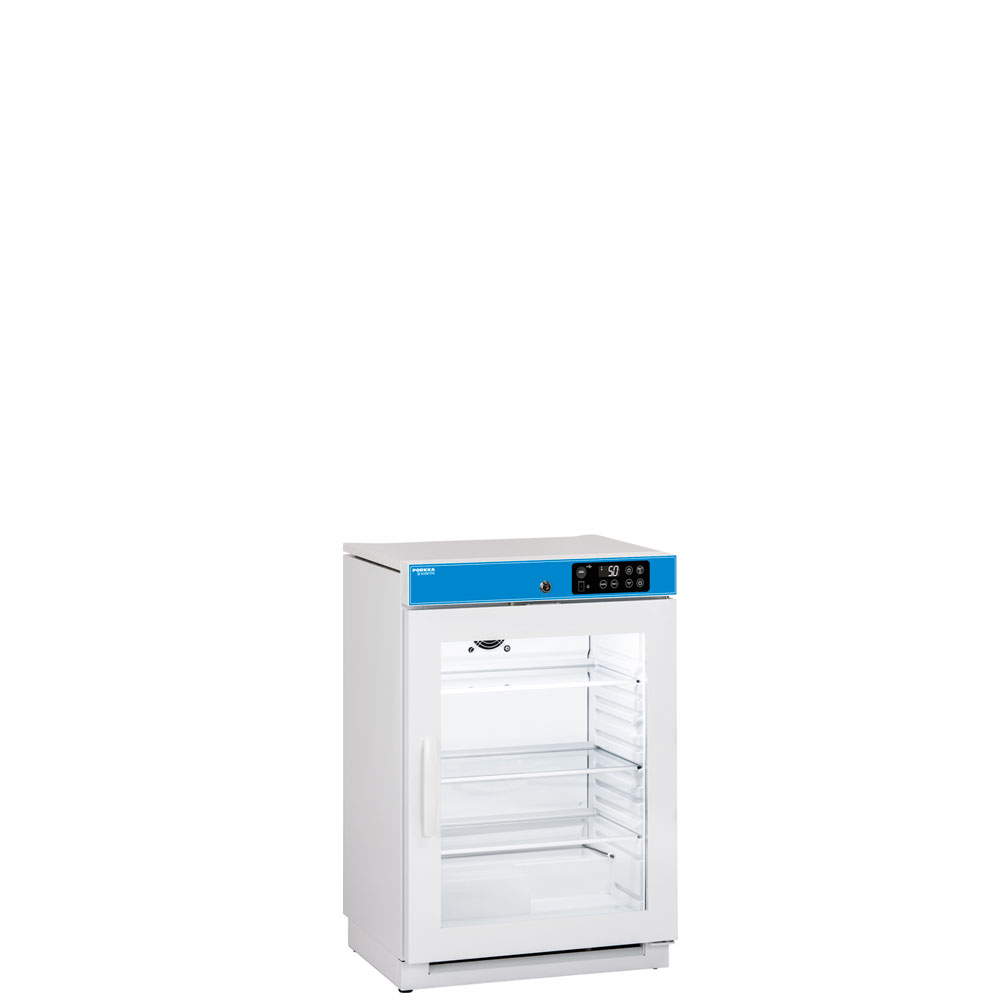

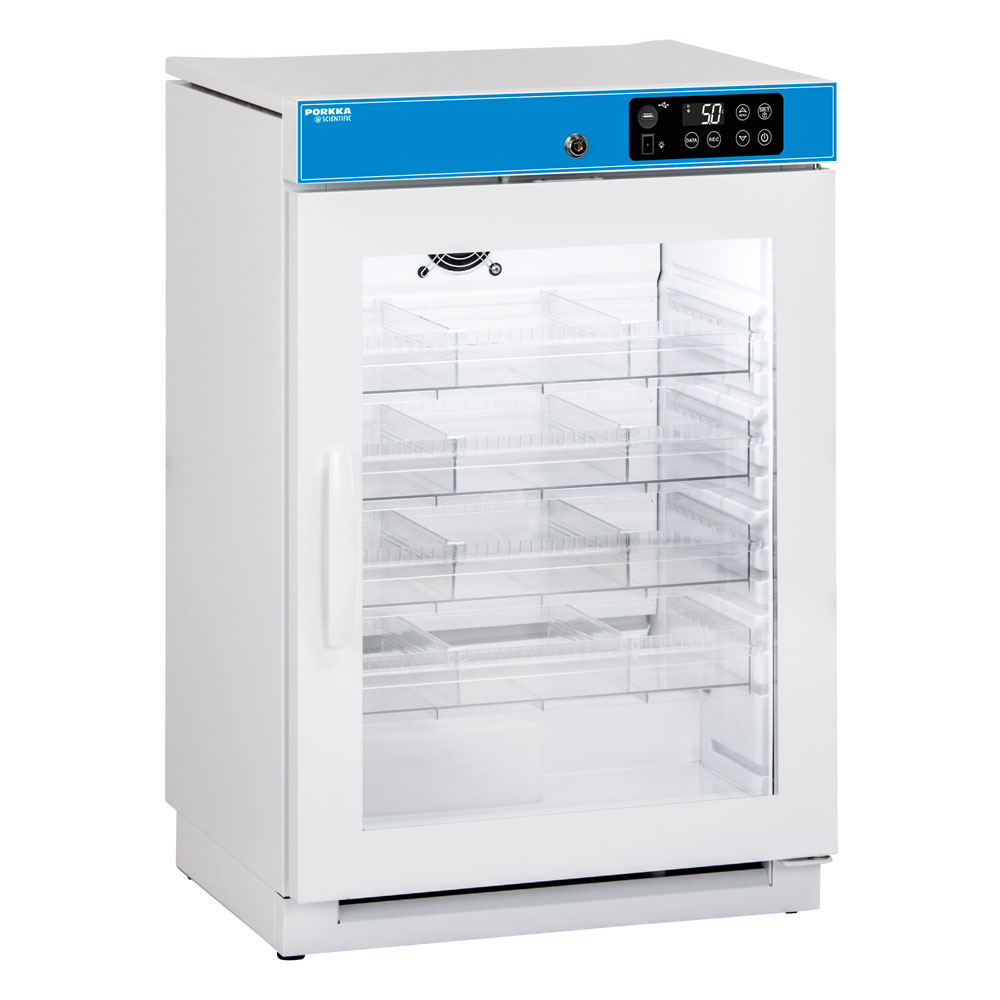

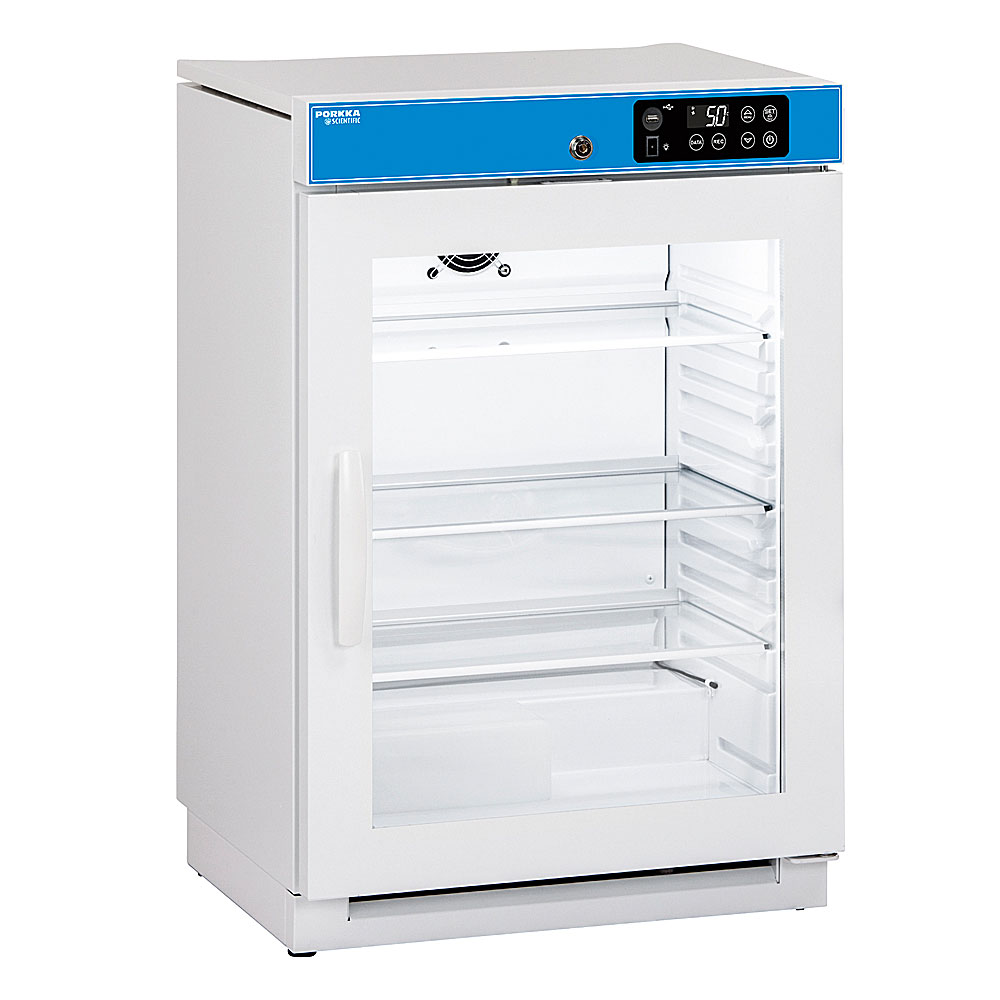

Porkka MED SAVE 120 GD Pharmaceutical Refrigerator

Technical data

External dimensions: Width (mm) 595
Note! ** Depth (mm) 500+ 30 (handle)
Height (mm) 860
Internal dimensions: Width (mm) 475
Depth (mm) 339 / 206
Front / back Height (mm) 610 / 530
Volume (measured on a stainless-steel shelf according to DIN standard) Net (litres) 83
Gross (litres) 100
Inner surfaces PS polystyrene
Weight Net (kg) 54
Package weight Gross (kg) 58
Package size Width (mm) 680
Depth (mm) 600
Height (mm) 1070
Sound level measured at the distance of 1m and from the height of 1.6 m dB 42
Ambient temperature ºC +5…+32
Operating temperature ºC +2…+15
Temperature accuracy ºC DIN58345
Refrigerant R600a (g) 50
Connection Power W 50
Fuse Slow (A) 10
Voltage V 230/50/60 Hz
Defrost 1. Air 2. Hot gas 3. Electric 3 Automatic

* Door shelf/drawer combination is not available in the refrigerator
** Ensure that there is sufficient air circulation around the device so that condensate air can freely enter the environment

SKU: MED120GD-1 Categories: , , , , Tag:

Description

ANTIMICROBIAL PHARMACEUTICAL REFRIGERATOR SERIES

Wide range of cabinets and drawer units, especially for the needs of physician’s offices, hospitals, and healthcare facilities. Lockable cabinets and drawer cabinets that are easy to clean are the ideal solutions for storing medicines..

The standard feature of all MED Series products is an antibacterial handle (1), and an automatic condensate evaporation system (4). Antibacterial treatment of the handle and the evaporation pan includes adding a silver-based additive to their components during the manufacturing process. Thanks to such treatment the handles and evaporation pans are permanently protected against microorganisms (bacteria, fungi, mould, and even viruses).The products are designed to minimise spreading of bacteria and viruses, while eliminating the need to have the water accumulation pan emptied by the user (3).

In order to ensure real time temperature recordings control unit has LED display and USB port to facilitate recording. MED products are available with optional battery backup and anti-freeze protection systems (DIN 58345 criteria).

Shelves or drawers

Glass shelf 1/2 : width 475 mm, depth 175 mm (amount standard/maximum)

 (pcs) 3/4

Door shelf: width 425 mm, depth 90 mm (amount standard/maximum) *

 (pcs) 3
OR

Full depth 1/1 glass shelf: width 475 mm, depth 260 mm (amount standard/maximum)

 (pcs) 3/4
OR

Stainless steel shelf : width 475 mm, depth 330 mm (amount standard/maximum)

 (pcs) 3/4
OR

Drawers: width 460 mm, depth 253 mm (amount standard/maximum) *

 (pcs) 3/4

SAVE Controller

MED SAVE Control unit LED numerical display

All cabinet models feature a clear and easy-to-use MED SAVE control unit. All main functions can be performed with one push button: checking of the minimum and maximum temperature, continuous on/off recording of temperature, continuous recording of temperature on a USB flash drive.

  • continuous temperature recording
  • USB port for data reading
  • big LED number temperature display
  • complies with the requirements DIN 58345 set to storage of pharmaceuticals
  • complies with the requirements DIN 58371 set to storage of red cell preparations
  • products are available with optional battery backup and anti-freeze protection systems (DIN accessory package)
  • temperature monitor during defrost
  • Versatile features and alarms of MED SAVE control unit are displayed on a large LED screen. If necessary, an acoustic alarm will also produce a sound signal. Potential-free alarm information is transferred to real estate supervision via a control unit. All possible alarms are stored in the memory of the control unit with precise time and alarm information

Features

  • Excellent temperature uniformity (± 1°C) measured with a weight of 25 g (DIN 58345)
  • Low noise level, under 45 dB(A)
  • Bacteria-free automatic evaporation for condensation water
  • Bacterial-free door handle
  • Control unit with clear numeric display for temperature and other functions
  • Real time temperature recording and USB port for data reading
  • Key lock on the control unit
  • Recording of maximum and minimum temperature
  • Visual and audible high/low temperature alarm
  • Temperature monitor during defrost
  • Door switch for fan control and door open-alarms
  • Probe failure alarm
  • Readiness for RS485 adapter for computer connection
  • Potential-free alarm terminal strip
  • Ability to connect the device to external property control
  • ø 8 mm sleeved access port for additional probe
  • 50 ml bottle for a temperature sensor inside the cabinet
  • fan assisted air distribution
  • Molded eco-friendly polyurethane insulated frame. The insulation thickness is 50 mm
  • External finish has a white polyester coated sheet steel
  • Interior finish in white vacuum foamed polystyrene and white polyester coated sheet steel
  • Glass shelves which are adjustable in increments of 36 mm. The door has easily removable door shelves (not in models 320 and GD)
  • Abloy lock is placed in front panel for easy maintenance (Abloy Sentry key)
  • The self-closing door has a sturdy molded handle, magnetic seal, and durable hinges. The door remains open at a 90 degree angle
  • Automatic defrost
  • Efficient, environmental friendly, energy saving refrigerant system R600
  • Electrical supply 230V / 50/60Hz

Accessories

  • Plastic drawer with dividers
  • Stainless steel shelves
  • Different glas shelf sizes
  • Internal LED light (as a standard in GD models)
  • Lock alternatives: Assa, iLOQ, Ruko (Abloy as a standard)
  • Basin H=180 mm

DIN accessory package :

  • 12-hour battery backup for MED SAVE control unit’s power failure alarm and temperature recording (DIN 58345 requirement)
  • Anti-freeze protection (DIN58345 requirement)

Downloads

TECHNICAL DATA  MED SAVE ( MEDLAB SAVE (052020 EN)

MANUAL MED / SAVE, MEDLAB / SAVE and BB (092020b_EN)
