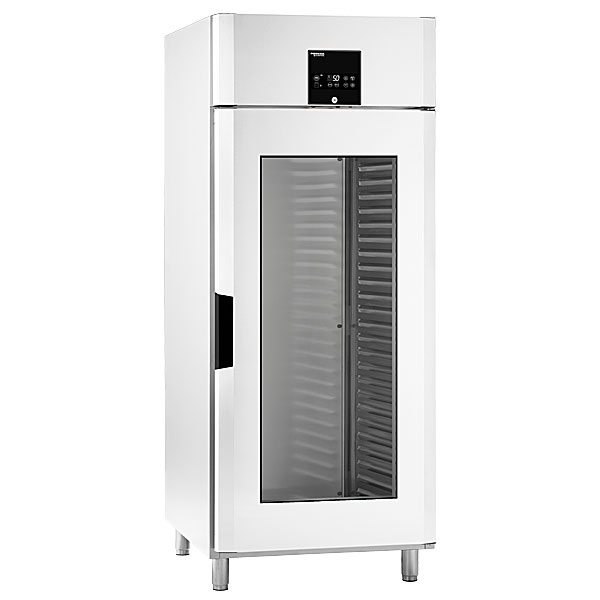

Inventus BB 8 GW Blood Bank

External dimensions Width mm 850
Depth mm 750
Height mm 2100
Internal dimensions Width * mm 654
Depth mm 555
Height mm 1485
Volume (measured on a SS shelf according to DIN standard) Net Liter 491
Gross Liter 619
Weight Net kg 157
Package Weight Gross kg 167
Package size Width mm 900
Depth mm 800
Height mm 2250
Sound level measured at the distance of 1m and from the height of 1.6 m dB 49
Operating temperature ºC +2…+6 °C
Ambient temperature ºC +10…+35 °C
Temperature accuracy ºC
Refrigerant g (GWP) g R290/115 g (3)
Connection Power kW 0.5
Fuse Slow A 10
Voltage V 230/50 Hz
Defrost 1. Air 2. Hot gas 3. Electric 1
Energy consumption (GW LED light OFF/ON) kWh/Year 409
Energy consumption (GW LED light OFF/ON) kWh/d 1,12
Shelves(Width x Depth) mm 650 x 530
Shelf amount standard/maximum pcs 5 / 8
Storage boxes amount standard / maximum pcs

Description

Cabinets of the BB series are suited for blood banks and hospitals. The standard cabinets have a number of features improving storage of red cell preparations and product safety.

Internal surfaces and glass shelves of BB blood banks are easy to clean. Standard setup of the lockable and easy to clean Inventus BB blood bank includes storage boxes and five glass shelves adjustable in 56 mm intervals.

Maximum capacity of bloodbags in storage boxes:

  • INVENTUS BB 6: 2 storage boxes / shelve x 8 shelves = 192 bloodbags / cabinet
  • INVENTUS BB 8: 3 storage boxes / shelve x 8 shelves = 416 bloodbags / cabinet

The properties of the BB blood bank cabinet series meet future requirements, and the product ranges complies with the provisions of the new F-gas regulation (No. 517/2014). The BB series products are designed with a particular attention to safe storage of products, and the storage temperatures satisfy even the most stringent requirements

Nanoksi Fotonit – Touch safe surfaces as standard

In all Inventus products for medical institutions and research, the door handle (1) and the control keypad (2) are treated with Nanoksi Fotonit photocatalytic coating. As a factory-fitted accessory, the interior of the device (3) can be also treated with Nanoksi Fotonit. In this case, the device is also equipped with a disinfection lamp.

Controller

Control unit LED numerical display

All cabinet models feature a clear and easy-to-use control unit. All main functions can be performed with one push button: checking of the minimum and maximum temperature, continuous on/off recording of temperature, continuous recording of temperature on a USB flash drive.

  • Continuous temperature recording
  • USB port for data reading
  • Big LED number temperature display
  • Complies with the requirements DIN 58345 set to storage of pharmaceuticals andthe requirements DIN 58371 set to storage of red cell preparations
  • High Temperature Protection during defrost period both chillers and freezers
  • Anti-freeze protection system (chillers)
  • Products are available with optional battery backup (DIN accessory package)
  • Versatile features and alarms of the control unit are displayed on a large LED screen. If necessary, an acoustic alarm will also produce a sound signal. Potential-free alarm information is transferred to real estate supervision via a control unit. All possible alarms are stored in the memory of the control unit with precise time and alarm information.

Features

  • Excellent temperature uniformity (+-1 C) according to DIN 58371
  • Low noise level, under 49 dB(A)
  • Control unit with clear numeric display for temperature and other functions
  • Real time temperature recording and USB port for data reading
  • 12-hour battery backup for control unit’s power failure alarm and temperature recording (DIN 58371 requirement)
  • Key lock on the control unit
  • Recording of maximum and minimum temperature
  • Visual and audible high/low temperature alarm
  • Door switch for fan control and door open-alarms
  • Probe failure alarm
  • Readiness for RS485 adapter for computer connection
  • Potential free (no voltage) alarm coupling readiness for real estate monitoring
  • 50 ml bottle for a temperature sensor P4 inside the cabinet
  • Fan assisted air distribution
  • Automatic defrost
  • Anti-freeze protection
  • Temperature monitor during defrost
  • 8 mm sleeved access port for additional probe
  • RJ 45 alarm cable with junction box
  • Automatic vaporization of condensed water
  • Molded eco-friendly polyurethane insulated frame. The insulation thickness is 80-100 mm
  • External finish has a white polyester coated sheet steel or stainless steel. Interior finish in stainless steel grade AISI 304
  • 5 glass shelves with 2-3 pcs storage boxes / shelf for blood bag storage. Tranparent plastic window at the front of storage box. Shelves are adjustable in increments of 56 mm
  • Abloy lock is placed in front panel for easy maintenance (Abloy Sentry key)
  • The self-closing door has a sturdy molded handle, magnetic seal, and durable hinges. The door remains open at a 90 degree angle
  • Fotonit coated microbially protected handle is designed as a solid part of the door
  • Stainless steel legs, height adjustable from 130 mm to 205 mm
  • Efficient, environmental friendly, energy saving R290 refrigerant
  • Electrical supply 230V / 50 Hz

Accessories

  • Additional shelves
  • Flat bottomed plastic storage box set
  • Stainless steel wire basket
  • Castors, lockable front castors
  • Short stainless steel legs, adjustable from 70 mm to 85 mm
  • Door opening pedal
  • LED light (standard in GW models)
  • iLOQ lock (Abloy as a standard)

Downloads

 PORKKA Inventus Medical, Technical Data 2021/6
