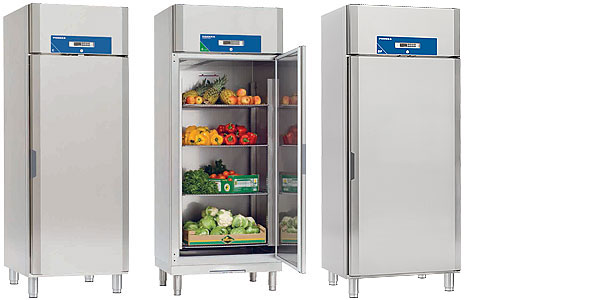

Porkka Future Refrigeration and Freezer Cabinets for Professional Use

Designed for use in professional kitchens and food preparation areas, Porkka Future series of upright combination cabinets and commercial refrigerators are manufactured from quality materials to ensure long lasting performance in arduous conditions.

Manufactured in three temperature ranges:

  • Chiller Cabinets (Type C: +1…+12°C)
  • Medium Temperature Cabinets (Type M: -5…+12°C) and
  • Freezer Cabinets (Type F: -26…-15°C).

Future Cabinets are also used in shops, restaurants, cafeterias and gas stations to name a few.

Future cabinets can be used up to 43 °C ambient temperature. The commercial refrigerator cabinets are available mounted on castors or legs. The doors have tool-free replaceable magnetic gaskets. Four adjustable anti-tilt shelves with brackets are included as standard, they are designed to prevent over tilting when the tray is pulled out partially.

Future products are available in three temperature ranges: meat/fish, chiller and commercial freezers. Designed for large kitchens, shops, restaurants, cafés and service stations.

The cabinet inner structure is designed specifically for maintaining high levels of hygiene. Shelves and shelf posts can be removed without tools. The rounded corner / edges are designed for easy cleaning. All stainless-steel parts are dishwasher safe. Future E cabinets are available with the new ecological and efficient refrigerant R290. Stainless steel or white polyester coated steel sheet exterior.  AISI 304 stainless steel interior. Power supply 230 V / 50 Hz.

Four different models:

  • Future 520 is sized to accommodate 400 x 600mm shelves
  • Future 720 is GN 2/1 wide
  • Future 722 is GN 2/1 deep
  • Future 960 for trolley use

Stainless steel (AISI 304) exterior & interior. Optionally the exterior is available in white polyester coated sheet steel.

Applications

  • Bakeries and catering kitchens
  • Restaurants, catering companies
  • Hotel kitchens

Future 520 Chiller, Medium Temperature and Freezer Cabinets

Future 520 cabinet is designed for narrow installation spaces. The narrower Future 520 cabinet takes up little floor space and is ideal for small kitchens. Overall dimensions: W/D/H 600 x 700 x 2030 mm.

Available in three different temperatures: C520 (+1 … + 12 degrees), M520 (-5 … + 12 degrees) and F520 (-26 …- 15 degrees).

The cabinet includes four powder-painted steel shelves. Shelf size 400 x 550mm. The shelves are adjustable in 30 mm intervals. The cabinet is available with left- or right-hand hinged door. Stainless steel or white polyester coated steel sheet exterior.  AISI 304 stainless steel interior

Future 720 Chiller and
Freezer Cabinets

Future-720 cabinet is a widthwise built 2/1 GN cabinet. The dimensions are the W/D/H: 850 x 750 x 2030 mm.

Available in three different temperatures: C720 (+1 … + 12 degrees), M720 (-5 … + 12 degrees) and F720 (-26 …- 15 degrees).

The cabinet includes four powder-painted steel shelves. Shelf size 650 x 530mm. The shelves are adjustable in 30 mm intervals. The cabinet is available with left- or right-hand hinged door. Stainless steel or white polyester coated steel sheet exterior.  AISI 304 stainless steel interior.

Future 722 Chiller and
Freezer Cabinets

Future 722 cabinet is depth wise built GN 2/1 cabinet. The dimensions are the W/D/H: 730 x 850 x 2030 mm.

Available in three different temperatures: C722 (+1 … + 12 degrees), M722 (-5 … + 12 degrees) and F722 (-26 …- 15 degrees).

The cabinet includes four powder-painted steel shelves. Shelf size 530 x 630 mm. The shelves are adjustable in 30 mm intervals. The cabinet is available with left- or right-hand hinged door. Stainless steel or white polyester coated steel sheet exterior.  AISI 304 stainless steel interior.

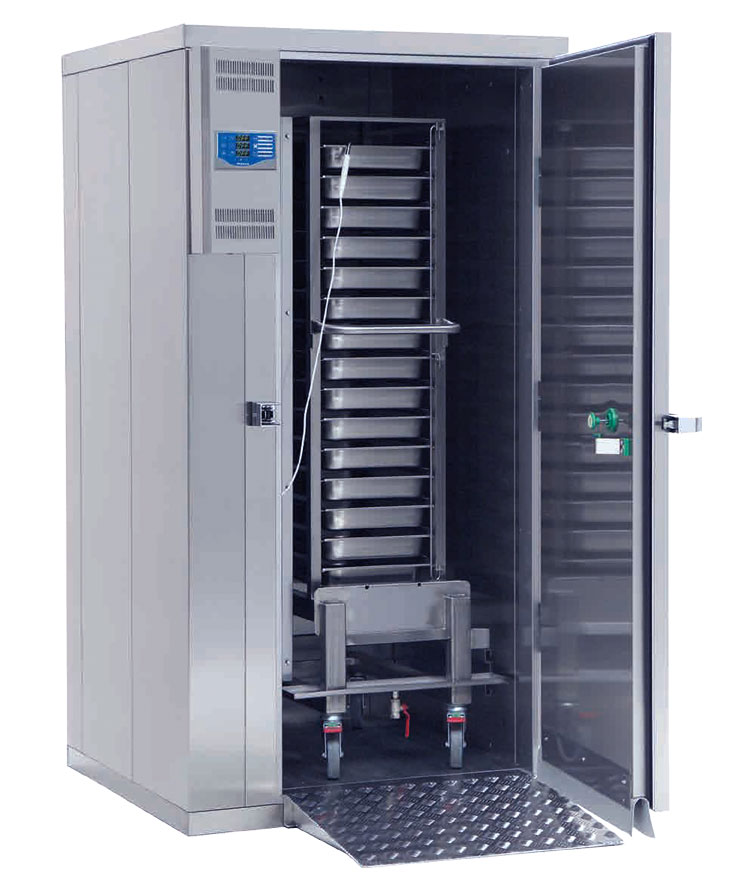

Future 960 Chiller and
Freezer Cabinets for trolley use

Future 960 cabinet dimensions are the W/D/H: 850 x 1030 x 2250 mm.

Available in two different temperatures: RIC 960 (+2 … + 12 degrees), RIF 960 (-22 … + 18 degrees).

Chiller and freezer cabinets solely for use with trolleys, RIC 960 and RIF 960 are designed for the storage of ready chilled products and can accept various sizes and types of trolleys. Refrigeration equipment can be supplied as on-board air-cooled condensing units or the cabinets can be connected to remote central cooling system. External and internal finish is stainless steel AISI grade 304.

Features: Future 520, 720, 722

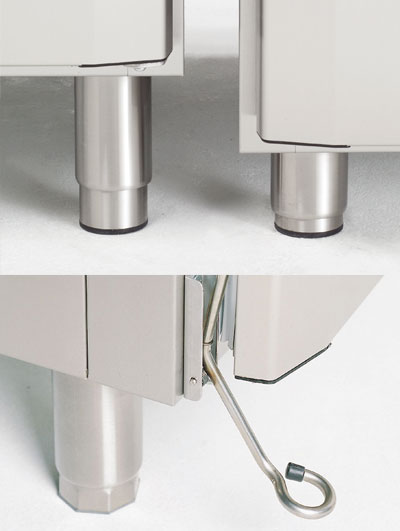

future_plus_features2

Features

  • Digital temperature display with built-in microprocessor controller
  • Keyboard tamper protection
  • Recording of max./min. temperature
  • Visual and audible high/low temperature alarm
  • Door open alarm
  • Probe failure alarm
  • Exterior/Interior finish in stainless steel grade AISI 304
  • Insulation with high density HCF free polyurethane
  • 4 or 8 pcs wire shelves, powder paint coating, adjustable in increments of 30 mm (not with RIC/RIF)
  • 4 or 8 pairs anti-tilt stainless steel shelf supports (not with RIC/RIF)
  • Door equipped with lock, magnetic gasket and heavy-duty spring hinges, 90° dwell open
  • Efficient and energy saving, hermetic air cooled refrigerant system
  • Stainless steel legs, height adjustable from 130 mm to 205 mm
  • Models 720/722 can accept GN 2/1 pans or containers

Optional Features

  • White polyester coated (food safe) sheet steel external finish (not with RIC/RIF)
  • Extra shelves as required (not with RIC/RIF)
  • Shorter stainless steel legs, adjustable from 70 mm to 105 mm
  • Real-time temperature data logging with download to USB facility
  • Door operated internal LED light (not with RIC/RIF or R290)
  • Foot pedal door opener
  • Castors, 2 of which are lockable.
  • Water cooled condenser with valve for connection to a chiller plant system
  • Also available for connection to a central cooling refrigeration system
  • Electrical supply 230V/60Hz (available for certain models)
