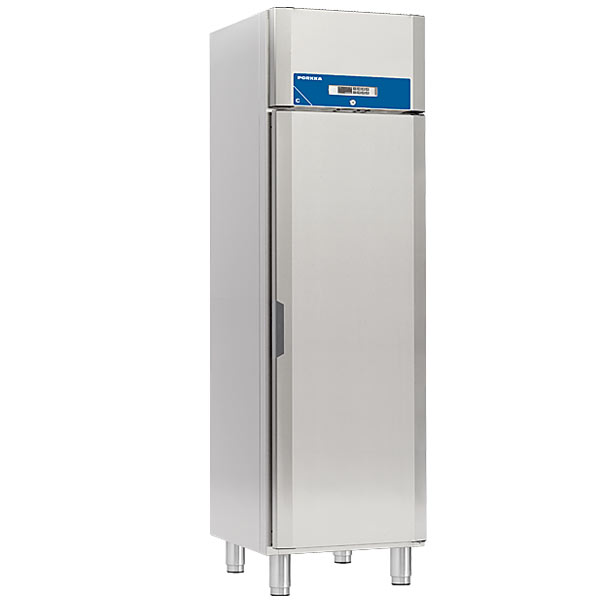

Future Plus E M530 medium temperature cabinet

Energy efficiency class E
Energy efficiency index 76,3
Energy Consumption (kWh/Year) 807
Net Volume (litres) 291
Climate class 4
Operating Temperature -5…+12 °C
Amb. Temperature +5…+38 °C
Width (mm) 600
Depth (mm) 750
Hight (mm) 2100
Hight with short legs (mm) 2040
Internal widht (mm) 480
Internal depth (mm) 560
Internal hight (mm) 1430
Shelves (pcs) 4
Size of the shelves (width x depth mm) 400 x 530
Gross weight (kg) 120
Connection power (W) 412
Cooling effect (W) 561
Voltage 230V/50Hz
Defrost Hotgas
Refrigerant (g)/GWP R290/120 g (GWP 3)

Description

Future Plus E M530  is commercial cabinet for medium temperature products like fish or meat. Cabinets are designed to operate using the latest hydrocarbon energy efficient refrigerant R290. Use in professional kitchens and food preparation and storage areas. Future Plus E is energy saving cabinet with built in air channel, filter cassette and hygienic roof. Cabinet is sized to accommodate 400 x 600 mm shelves or bakery plates.

Cabinets are supplied with a choice of legs or castors, easy to change pull out / push-in door gaskets and adjustable four tier shelving which is fitted with ant-tilt supports to avoid accidental spillages.

Every care has also been taken to ensure that high hygiene levels can be maintained, all shelving and pilasters can be removed by hand and rounded corners and one piece-dished floor allows for easy deep cleaning.

External finish has a choice of stainless steel AISI 304 or white polyester coated sheet steel, in every model the internal surfaces are produced from AISI 304 grade stainless steel.



Features

• Air intake at the bottom of the cabinet ensures the coolest air is fed to the condenser trough a filter ensuring lower energy consumption
• Hygienic roof
• Easy to clean filter construction
• 4 pcs steelwire shelves, adjustable in increments of 30 mm
• 4 pairs anti-tilt stainless steel shelf supports
• Digital temperature display with built-in microprocessor controller
• Keyboard tamper protection
• Recording of max./min. temperature
• Visual and audible high/low temperature alarm
• Door open alarm
• Probe failure alarm
• Exterior/Interior finish in stainless steel grade AISI 304
• Door equipped with lock, magnetic doors gasket and heavy-duty spring hinges, 90 ° dwell open
• Efficient and energy saving refrigerant system
• Stainless steel legs, height adjustable from 130 mm to 205 mm

Optional equipment

• Depending on model external surfaces available with white polyester coated (food save) sheet steel
• Also available for connection to a central cooling refrigeration system
• Extra shelves as required
• Bakery shelves
• Castors 2 of which are lockable
• Shorter stainless steel legs, adjustable from 70 mm to 105 mm
• Foot pedal door opener
• Electrical supply 230 V / 60 Hz
