Porkka Bar 550 Counters for Beverages

Porkka Bar Line 550 -series of counters are ideal for the storage and serving of beverages at optimum temperature for customer satisfaction.

Counters are manufactured from quality components they are durable and long lasting, naturally, the counters are supplied ready for the usage and benefit from stainless steel bodies both internally and externally.

Pre-configure your counter

There are multiple variations of CL-GNH –models. You can design your counter with the web application (requires Adobe Flash). To see more information on available variations, please check the tab “available modules”.

COUNTER CONFIGURATOR (Flash)

Didn’t find what You are looking for?

Do you want special configuration to fulfill your needs? Please, go to contact center page and send an e-mail to your local specialist.

CONTACT CENTER >

SKU: BS55 Categories: Bar Line, Counters, HOTEL, RESTAURANT & CATERING

Description

Bar 550 counters can be supplied in various formats with either doors or drawers, chilled wells, ice bins or wells for bottle storage. All are designed to speed service at point of sales.

Glass doors either hinged or sliding can also be fitted to make an attractive point of sale merchandiser.

Features

With environmental friendly and energy efficient refrigerant R290
Digital temperature display with built-in microprocessor controller
Recording of max./min. temperature
Visual high/low temperature alarm
Probe failure alarm
Blocked condenser / high ambient temperature alarm
Exterior / Interior finish in stainless steel
Insulation with high density HFC-free polyurethane
Glass door or glass sliding door with pull-out crate shelves
Module with 2 drawers equipped with magnetic gasket
Efficient and energy saving, hermetic air cooled HFC-freerefrigerant system
Slid-in/out refrigeration cassette (by hand) for easy servicing
Built-in washable condenser air filter
Lighting behind the glass doors
Stainless steel legs, height adjustable(-5mm to +65 mm)
Central locking system
Electrical supply 230V/50Hz

Optional Features

Also available for connection to a central cooling refrigeration system
Shorter, adjustable stainless steel legs for a counter height of 825 mm
Special table tops
Heat treated wooden packaging

Technical Specification

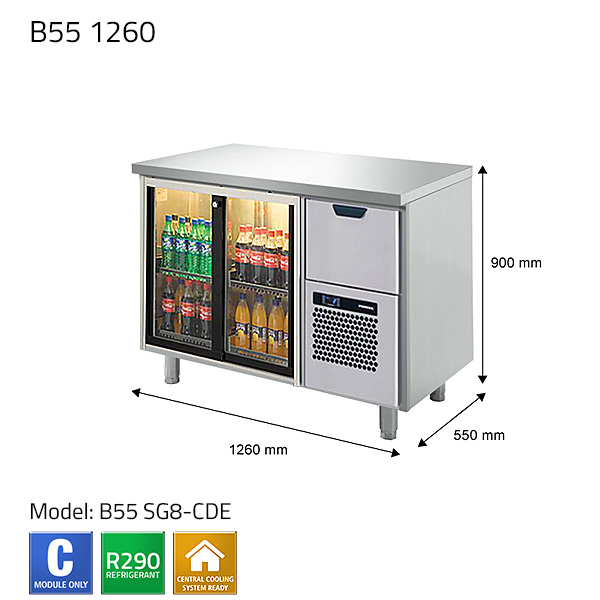

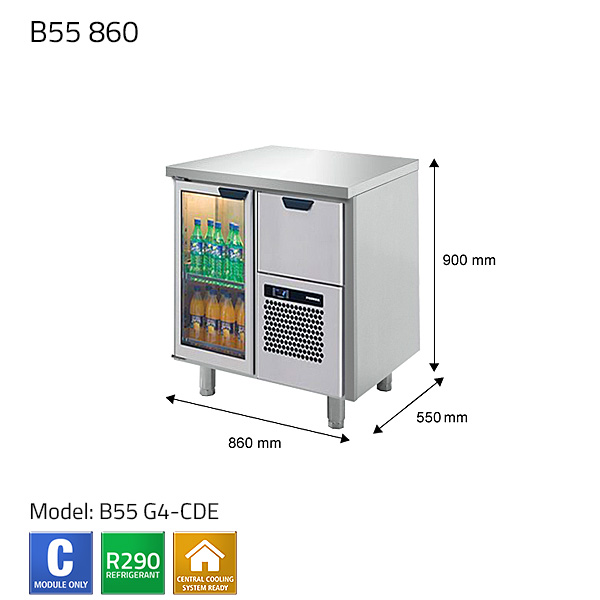

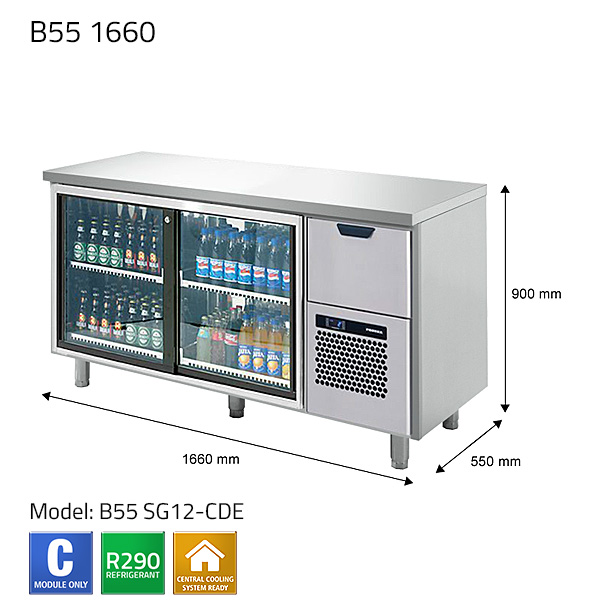

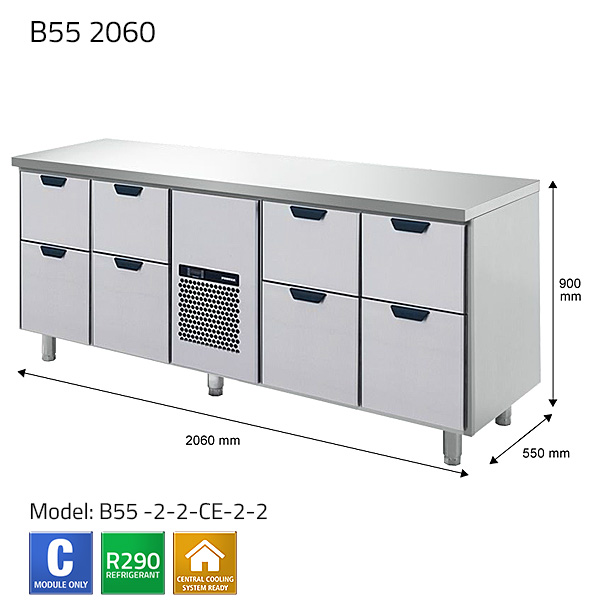

	B55 860	B55 1260	B55 1660	B55 2060
Operating Temperature	+5…+15 °C	+5…+15 °C	+5…+15 °C	+5…+15 °C
Amb. Temperature	+5…+25 °C	+5…+25 °C	+5…+25 °C	+5…+25 °C
Width (mm)	860	1260	1660	2060
Depth (mm)	550	550	550	550
Height (mm)	900	900	900	900
Height with short legs (mm)	850	850	850	850
Gross weight (kg)	99	134	167	200
Connection power (kw)	0.25	0.25	0.25	0.25
Voltage	230V/50Hz	230V/50Hz	230V/50Hz	230V/50Hz
Defrost	Air	Air	Air	Air
Refrigerant (g)/GWP	R290/90 g (GWP 3)	R290/90 g (GWP 3)	R290/90 g (GWP 3)	R290/90 g (GWP 3)

Available Modules

Module G4	Module glass door	Glass door with light and 2 drawer shelves for bottles
Module G8	Module sliding glass doors	Sliding glass doors with 2 x 400 mm wide glass doors, light and 2 drawer shelves for bottles
Module G12	Module sliding glass doors	Sliding glass doors with 2 x 600 mm wide glass doors, light and 2 drawer shelves for bottles
Module D4	Module with door	Solid door with 2 shelves
Module 2	Module with 2 drawers	2 drawers for crates


Module CE	Refrigeration unit CE without drawer with ECO refrigerant R290	+2…+15 °C
Module CDE	Refrigeration unit CDE with a drawer and Eco friendly refrigerant R290	+2…+15 °C

Neutral Modules

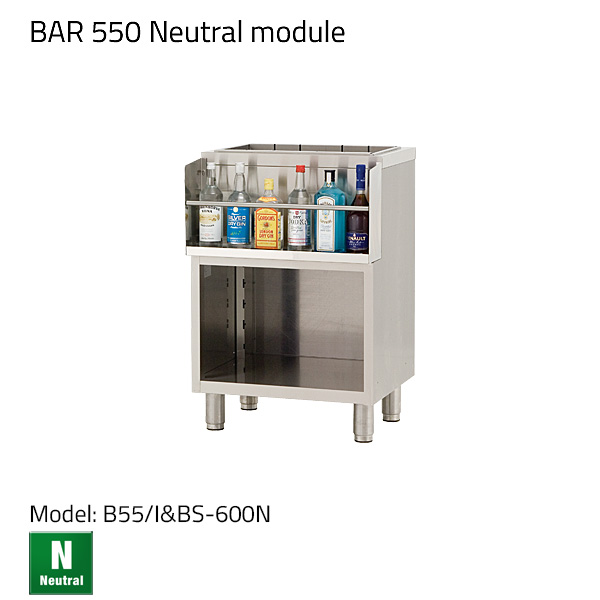

Module I&BS	Ice/Bottle sink units	400, 600, 800 mm

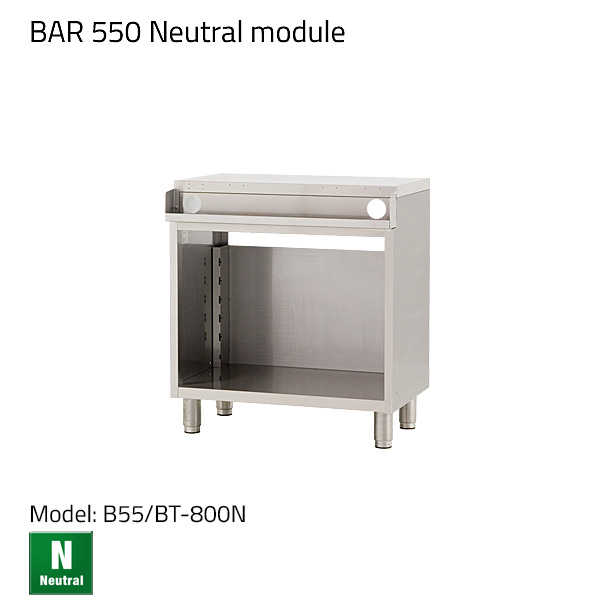

Module BT	Beer tap unitsCrate units	400, 600, 800 mm

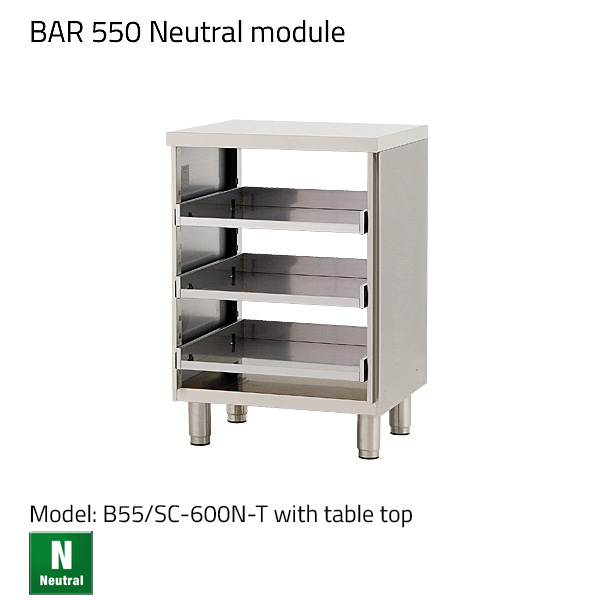

Module SC	Solid door with 2 shelves	600 mm with top, or without top

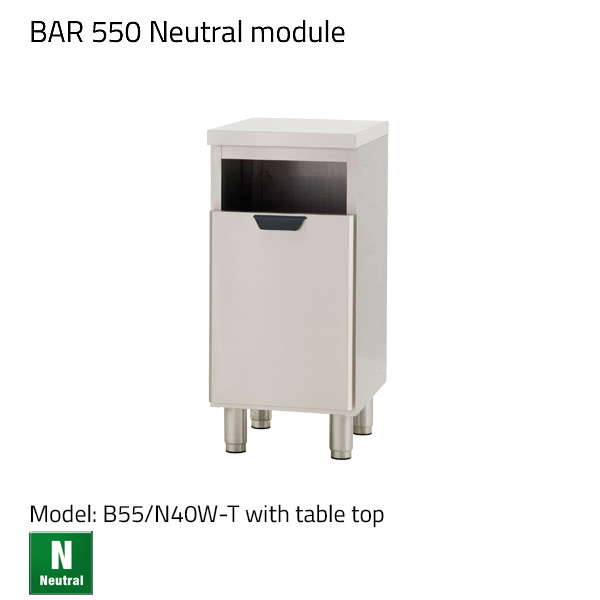

Module N40W	Trash units	400 mm with top, or without top

Brochures

Porkka Counters (PDF)
