Porkka Cold Line Counters for Beverage Storage

Porkka Cold line CL-D beverage counters are  ideal for serving and storing drinks at optimum serving temperature.

Counters are manufactured from quality components they are durable and long lasting, naturally, the counters are supplied ready for the usage and benefit from stainless steel bodies both internally and externally.

Pre-configure your counter

There are multiple variations of CL-D –models. You can design your counter with the web application (requires Adobe Flash). To see more information on available variations, please check the tab “available modules”.

COUNTER CONFIGURATOR (Flash)



Didn’t find what You are looking for?

Do you want special configuration to fulfill your needs? Please, go to contact center page and send an e-mail to your local specialist.

CONTACT CENTER >
SKU: CL-D Categories: , ,

Description

Each door or drawer is lockable with central locking system and the base is supplied with legs. Shelving is included with each door section.

The equipment also benefits from innovative design features such as pull out refrigeration cassettes for simple maintenance or repair.

Features

  • Environmental friendly and energy efficient refrigerant R290
  • Digital temperature display with built-in microprocessor controller
  • Recording of max./min. temperature
  • Visual high/low temperature alarm
  • Probe failure alarm
  • Blocked condenser / high ambient temperature alarm
  • Exterior / Interior finish in stainless steel
  • Insulation with high density HFC-free polyurethane
  • The module has 2 drawers, magnetic gasket and boxes with a stainless steel base
  • Slide-in/out refrigeration cassette (by hand) for easy servicing with 1 drawer incl. magnetic gasket
  • Efficient and energy saving, hermetic air cooled HFC-free refrigerant system
  • Built-in washable condenser air filter
  • Stainless steel legs, height adjustable (-5mm to +65 mm)
  • Central locking system
  • Electrical supply 230V/50Hz

Optional Features

  • Also available for connection to a central cooling refrigeration system
  • Module door with magnetic gasket and heavy-duty hinges
  • Extra shelves as required
  • Shorter, adjustable stainless steel legs for a counter height of 825 mm
  • Special table tops,
  • Heat treated wooden packaging

Technical Specification

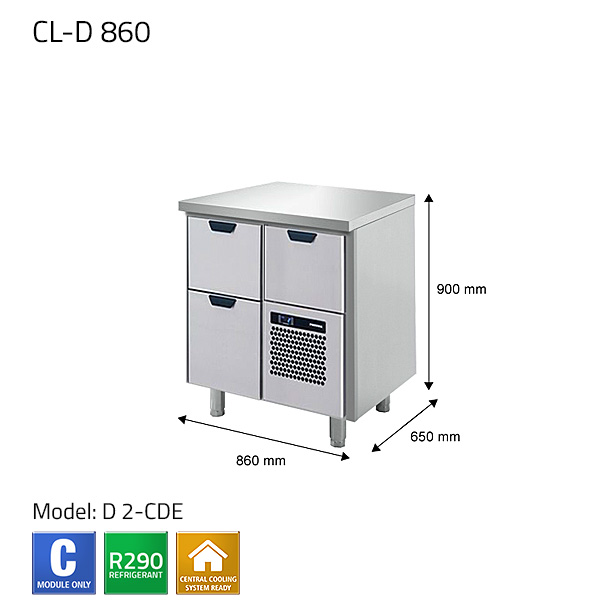

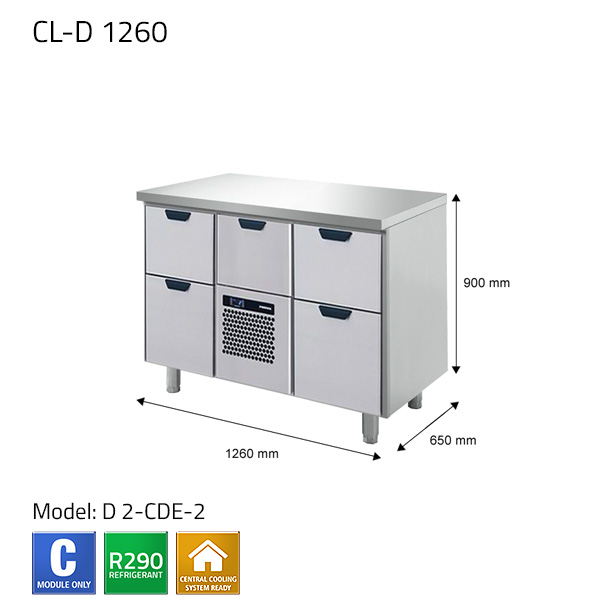

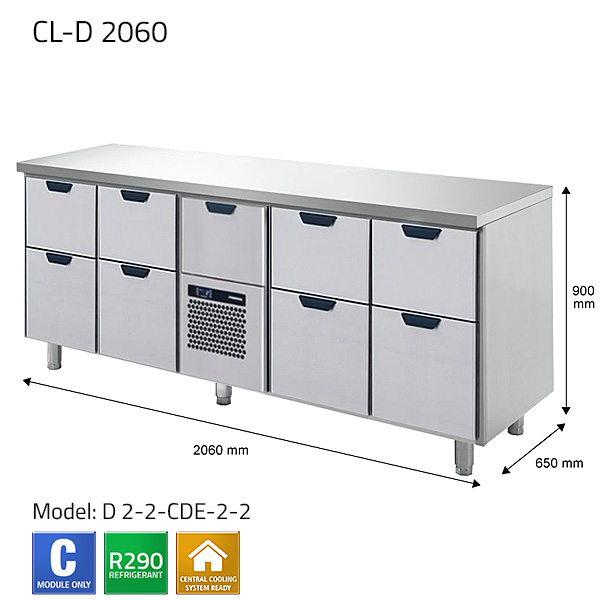

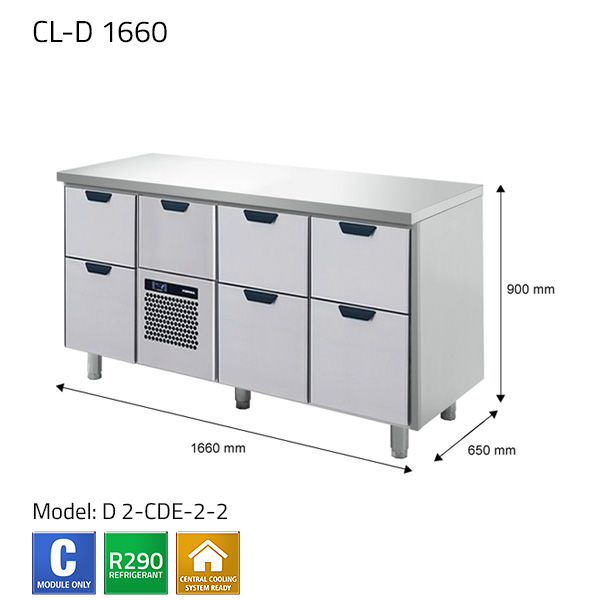

CL-D C860  CL-D C1260 CL-D C1660 CL-D C2060
Operating Temperature +2…+15 °C +2…+15 °C +2…+15 °C +2…+15 °C
Amb. Temperature +5…+25 °C +5…+25 °C +5…+25 °C +5…+25 °C
Width (mm) 860 1260 1660 2060
Depth (mm) 650 650 650 650
Height (mm) 900 900 900 900
Height with short legs (mm) 850 850 850 850
Gross weight (kg) 108 142 176 215
Connection power (kw) 0.25 0.25 0.25 0.25
Voltage 230V/50Hz 230V/50Hz 230V/50Hz 230V/50Hz
Defrost Air Air Air Air
Refrigerant (g)/GWP* R290/90 g (GWP 3) R290/90 g (GWP 3) R290/90 g (GWP 3) R290/90 g (GWP 3)

Available Modules

Module 1 Module with door Solid door with 2 shelves
Module G4 Module with glass door Glass door with light and 2 drawer shelves for bottles
Module 2 Module with 2 drawers 2 drawers for crates
CE Refrigeration unit CE without drawer with ECO refrigerant R290 +2…+15 °C
CDE Refrigeration unit CDE with drawer and ECO refrigerant R290 +2…+15 °C
