Porkka Cold Line Counters for Food Storage with Refrigerated Well

Porkka CL-GNS counters with refrigerated well are designed for the display and serving foods in a serving line and keeping them at the correct temperature. GN 1/1 containers or smaller multiples can be accepted.

Counters are manufactured from quality components they are durable and long lasting, naturally, the counters are supplied ready for the usage and benefit from stainless steel AISI grade 304 bodies both internally and externally.

Pre-configure your counter

There are multiple variations of CL-GNS –models. You can design your counter with the web application (requires Adobe Flash). To see more information on available variations, please check the tab “available modules”.

COUNTER CONFIGURATOR (Flash)



Didn’t find what You are looking for?

Do you want special configuration to fulfill your needs? Please, go to contact center page and send an e-mail to your local specialist.

CONTACT CENTER >
SKU: CL-GNS Categories: , ,

Description

Each door or drawer is fitted with handle and easy to change pull out / push in gaskets and the base is supplied with height adjustable legs or castors. Shelving is included with each door section and drawers can also be supplied with internal base.

The equipment also benefits from innovative design features such as pull out refrigeration cassettes for simple maintenance or repair. Each door or drawer section can accept GN1/1 trays or pans or multiples of smaller sizes to suit the application.

Features

  • Environmental friendly and energy efficient refrigerant R290
  • Digital temperature display with built-in microprocessor controller
  • Recording of max./min. temperature
  • Visual high/low temperature alarm
  • Probe failure alarm
  • Blocked condenser / high ambient temperature alarm
  • Exterior / Interior finish in stainless steel
  • Insulation with high density HFC-free polyurethane
  • GN1/1 dimensioned 210 mm deep stainless steel forced air refrigerated well
  • 1 pc GN 1/1 dimensioned, powder coated, steel wire shelf, adjustable in increments of 70 mm (per door section)
  • Door equipped with magnetic gasket and heavy-duty hinges
  • Efficient and energy saving, hermetic air cooled HFC-free refrigerant system
  • Slid-in/out refrigeration cassette (by hand) for easy servicing
  • Built-in washable condenser air filter
  • Height adjustable legs or optional castors (-5mm to +65 mm)
  • Electrical supply 230V/50Hz

Optional Features

  • Also available for connection to a central cooling refrigeration system
  • Extra shelves as required
  • Divider frame GN1/1, designed to accept multiples of smaller containers sizes
  • Drainage for refrigerated well
  • Shorter, adjustable stainless steel legs for a counter height of 825 mm
  • Heat treated wooden packaging

Technical Specification

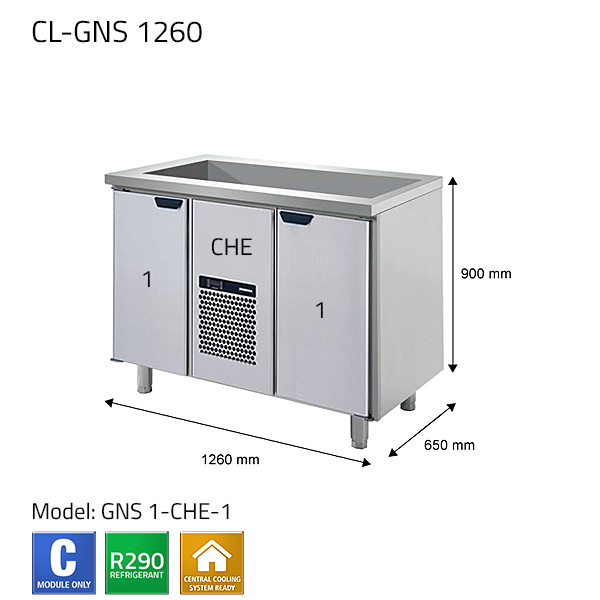

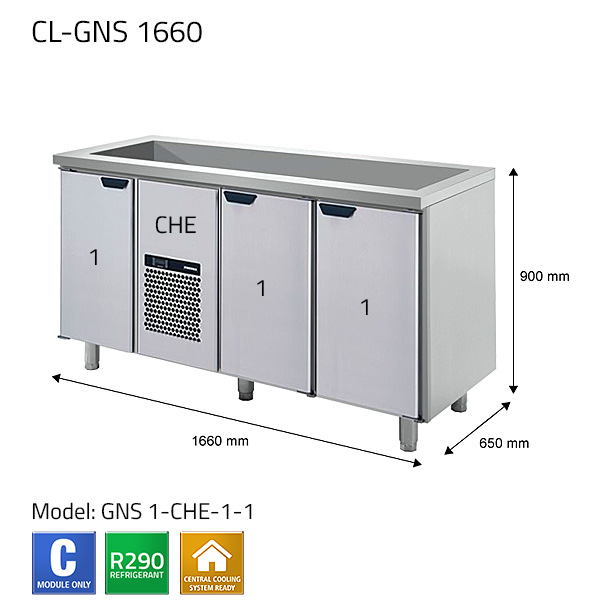

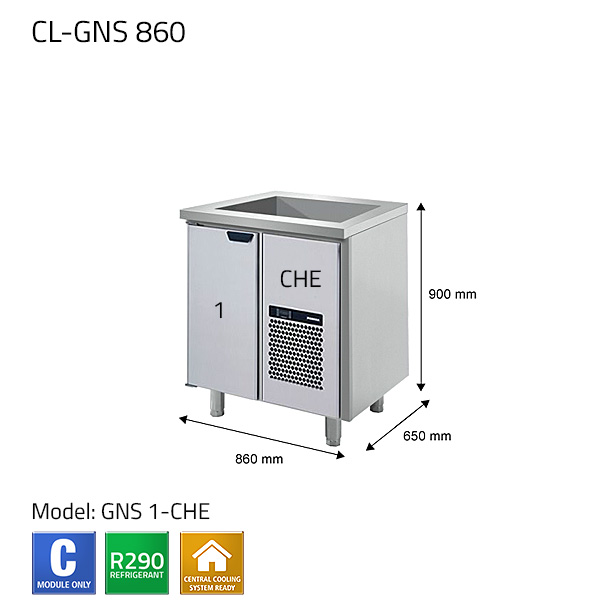

CL-GNS C860 CL-GNS C1260 CL-GNS C1660
Operating Temperature +2…+15 °C +2…+15 °C +2…+15 °C
Amb. Temperature +5…+25 °C +5…+25 °C +5…+25 °C
Width (mm) 860 1260 1660
Depth (mm) 650 650 650
Height (mm) 900 900 900
Height with short legs (mm) 650 650 650
Gross weight (kg) 87 114 144
Connection power (kw) 0.35 0.35 0.35
Voltage 230V/50Hz 230V/50Hz 230V/50Hz
Defrost Air Air Air
Refrigerant (g)/GWP* R290/90 g (GWP 3) R290/90 g (GWP 3) R290/90 g (GWP 3)

Available Modules

Module 1 Module with door Solid door with 1 shelf
Module 2 Module with 2 drawers 2 drawers with telescopic rails for GN-containers (1 x 150 mm deep and 1 x 200 mm deep)
Module CHE Refrigeration unit CHE without drawer with Eco refrigerant R290 +2…+15 °C

Brochures

 Porkka Counters (PDF)
