Porkka Cold Line Counters for Pizza and Salad Preparation

Porkka Cold Line CL-P/S pizza and salad counters are ideal work stations for the preparation of salads, sandwiches and pizzas. The unit has a refrigerated well with sneeze proof cover which accepts gastronorm containers.

Counters are manufactured from quality components they are durable and long lasting, naturally, the counters are supplied ready for the usage and benefit from stainless steel AISI grade 304 bodies both internally and externally.

Pre-configure your counter

There are multiple variations of CL-P/S –models. You can design your counter with the web application (requires Adobe Flash). To see more information on available variations, please check the tab “available modules”.

COUNTER CONFIGURATOR (Flash)



Didn’t find what You are looking for?

Do you want special configuration to fulfill your needs? Please, go to contact center page and send an e-mail to your local specialist.

CONTACT CENTER >
SKU: CL-PS Categories: , ,

Description

Each door or drawer is fitted with handle and easy to change pull out / push in gaskets and the base is supplied with height adjustable legs or castors, shelving is included with each door section and drawers can also be supplied with internal base.

The equipment also benefits from innovative design features such as pull out refrigeration cassettes for simple maintenance or repair. Each door or drawer section can accept GN1/1 trays or pans or multiples of smaller sizes to suit the application.

Features

  • Environmental friendly and energy efficient refrigerant R290
  • Digital temperature display with built-in microprocessor controller
  • Recording of max./min. temperature
  • Visual high/low temperature alarm
  • Probe failure alarm
  • Blocked condenser / high ambient temperature alarm
  • Exterior / Interior finish in stainless steel
  • Insulation with high density HFC-free polyurethane
  • GN 1/3 dimensioned canted stainless steel refrigerated well at rear top of counter
  • 7 pairs of GN-runners. 2 pcs GN 1/1 dimensioned, powder coated, steel wire shelf, adjustable in increments of 70 mm (per door section)
  • Door equipped with magnetic gasket and heavy-duty hinges
  • Efficient and energy saving, hermetic air cooled HFC-free refrigeration system
  • Slid-in/out refrigeration cassette (by hand) for easy servicing
  • Built-in washable condenser air filter
  • Stainless steel legs, height adjustable (-5mm to +65 mm)
  • Electrical supply 230V/50Hz

Optional Features

  • Also available for connection to a central cooling refrigeration system
  • Module with 2 or 3 drawers with handle, magnetic gasket • Module refrigeration cassette with 1 drawer incl. handle, magnetic gasket
  • Extra shelves as required
  • Solid stainless steel base for drawer
  • Shorter, adjustable stainless steel legs for a counter height of 825 mm
  • Heat treated wooden packaging

Technical Specification

CL-P/S C860 CL-P/S C1260 CL-P/S C1660 CL-P/S C2060
Operating Temperature +2…+15 °C +2…+15 °C +2…+15 °C +2…+15 °C
Amb. Temperature +5…+25 °C +5…+25 °C +5…+25 °C +5…+25 °C

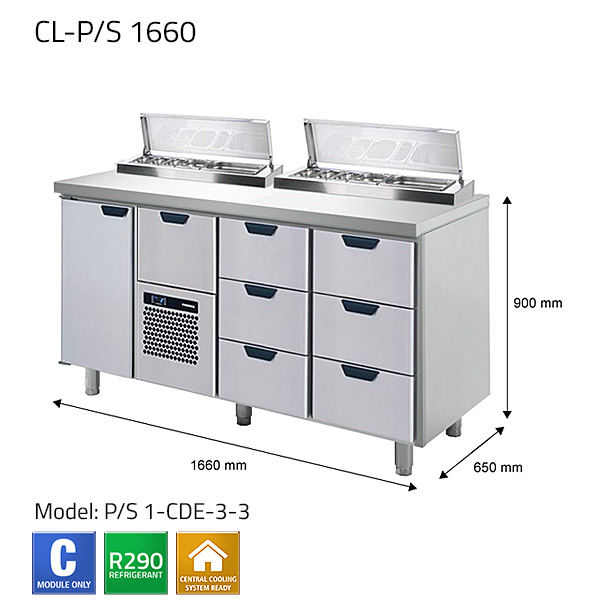

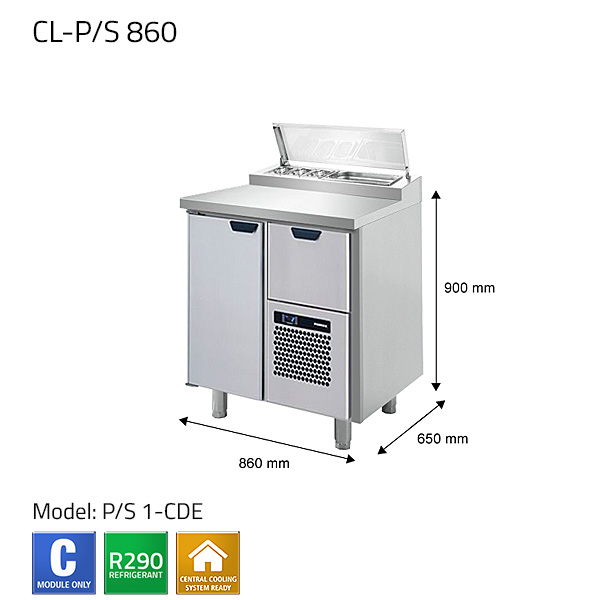

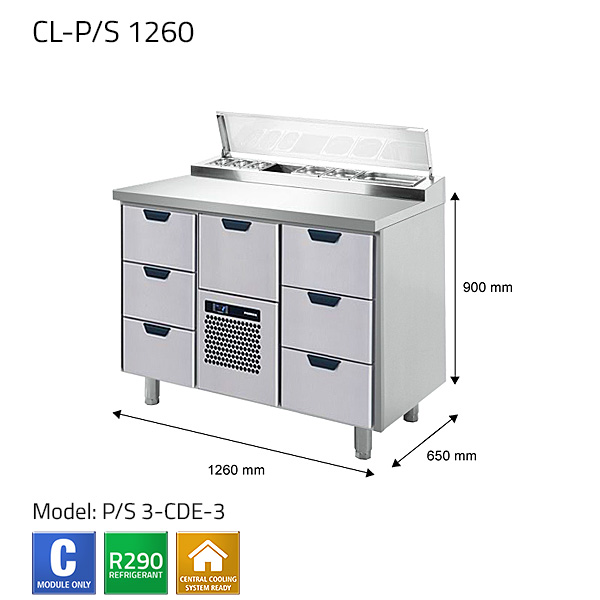

Width (mm) 860 1260 1660 2060
Depth (mm) 650 650 650 650
Height (mm) 900/1110 900/1110 900/1110 900/1110
Height with short legs (mm) 850 850 850 850
Gross weight (kg) 87 114 144 180
Connection power (kw) 0.25 0.25 0.25 0.35
Voltage 230V/50Hz 230V/50Hz 230V/50Hz 230V/50Hz
Defrost Air Air Air Air
Refrigerant (g)/GWP* R290/90 g (GWP 3) R290/90 g (GWP 3) R290/90 g (GWP 3) R290/130 g (GWP 3)

Available Modules

Module 1 Module with door Solid door with 2 shelves
Module 2 Module with 2 drawers 2 drawers with telescopic rails for GN-containers (200 mm deep)
Module 3 Module with 3 drawers 3 drawers with telescopic rails for GN-containers (150 mm deep)
Module 4 Module with 4 drawers 4 drawers with telescopic rails for GN-containers (3 x 100 mm and 1 x 150 mm deep)
Module CE* Refrigeration unit CHE without drawer with Eco refrigerant R290 +2…+15 °C
Module CDE* Refrigeration unit CDE with a drawer with Eco refrigerant R290 +2…+15 °C
Module CHE Refrigeration unit CHE without drawer with Eco refrigerant R290  +2…+15 °C
* not available in 2060 mm width counter
