Porkka Cold Line Counters with Refrigerated Well for Beverage Storage

Porkka Cold line CL-BS beverage counters with refrigerated well are designed for the display and serving bottles in a serving line, but keeping them at the correct temperature.

Counters are manufactured from quality components they are durable and long lasting, naturally, the counters are supplied ready for the usage and benefit from stainless steel AISI grade 304 bodies both internally and externally.

Pre-configure your counter

There are multiple variations of CL-BS –models. You can design your counter with the web application (requires Adobe Flash). To see more information on available variations, please check the tab “available modules”.

COUNTER CONFIGURATOR (Flash)



Didn’t find what You are looking for?

Do you want special configuration to fulfill your needs? Please, go to contact center page and send an e-mail to your local specialist.

CONTACT CENTER >

Description

Each door is lockable with central locking system and the base is supplied with legs, shelving is included with each door section.

The equipment also benefits from innovative design features such as pull out refrigeration cassettes for simple maintenance or repair.

Features

  • Environmental friendly and energy efficient refrigerant R290
  • Digital temperature display with built-in microprocessor controller
  • Recording of max./min. temperature
  • Visual high/low temperature alarm
  • Probe failure alarm
  • Blocked condenser / high ambient temperature alarm
  • Exterior / Interior finish in stainless steel
  • Insulation with high density HFC-free polyurethane
  • Top plate with integrated, air cooled 160 mm deep well for bottles
  • Door(s) equipped with magnetic gasket and heavy-duty hinges
  • Efficient and energy saving, hermetic air cooled HFC-free refrigerant system
  • Slide-in/out refrigeration cassette (by hand) for easy servicing
  • Built-in washable condenser air filter
  • Stainless steel legs, height adjustable (-5mm to +65 mm)
  • Central locking system
  • Electrical supply 230V/50

Optional Features

  • Optional features
  • Also available for connection to a central cooling refrigeration system
  • Shorter, adjustable stainless steel legs for a counter height of 825 mm
  • Heat treated wooden packaging

Technical Specification

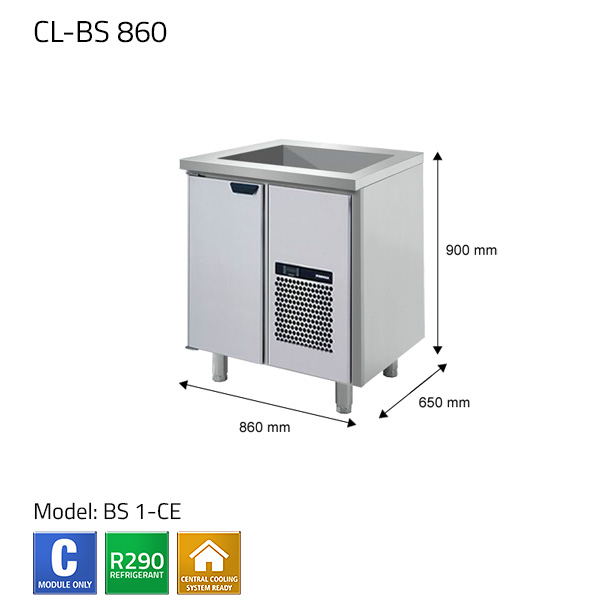

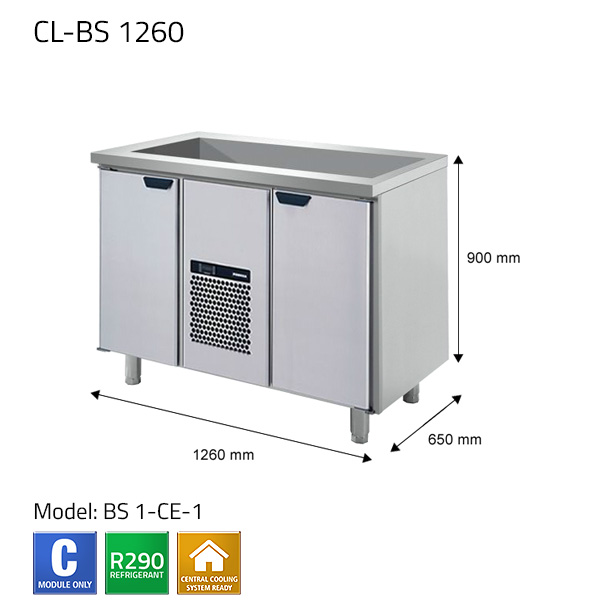

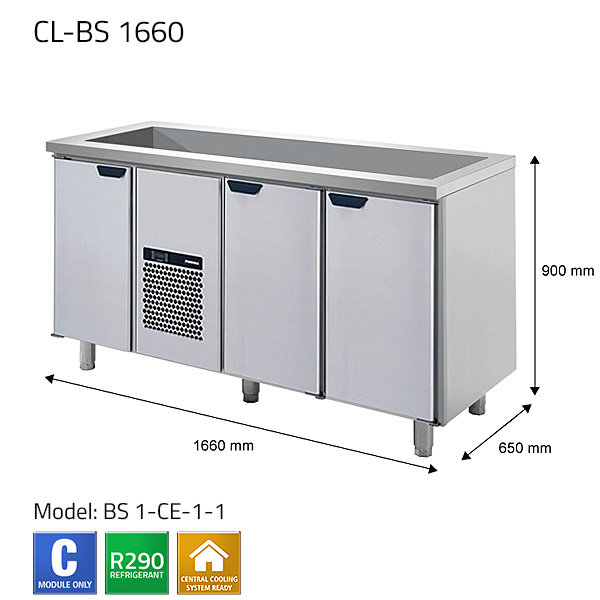

CL-BS 860  CL-BS 1260 CL-BS 1660
Operating Temperature +2…+15 °C +2…+15 °C +2…+15 °C
Amb. Temperature +5…+25 °C +5…+25 °C +5…+25 °C
Width (mm) 860 1260 1660
Depth (mm) 650 650 650
Height (mm) 900 900 900
Height with short legs (mm) 850 850 850
Refrigerated well width (mm) 690 1090 1490
Refrigerated well Depth (mm) 508 508 508
Refrigerated well Height (mm) 160 160 160
Gross weight (kg) 87 114 144
Connection power (kw) 0.25 0.25 0.25
Voltage 230V/50Hz 230V/50Hz 230V/50Hz

Available Modules

Module 1 Module with door Solid door with 2 shelves
Module 2 Module with 2 drawers 2 drawers with telescopic rails for GN-containers (1 x 150 mm deep and 1 x 200 mm deep)
Module CE Refrigeration unit CE without drawer with ECO refrigerant R290 +2…+15 °C

Brochures

 Porkka Counters (PDF)
