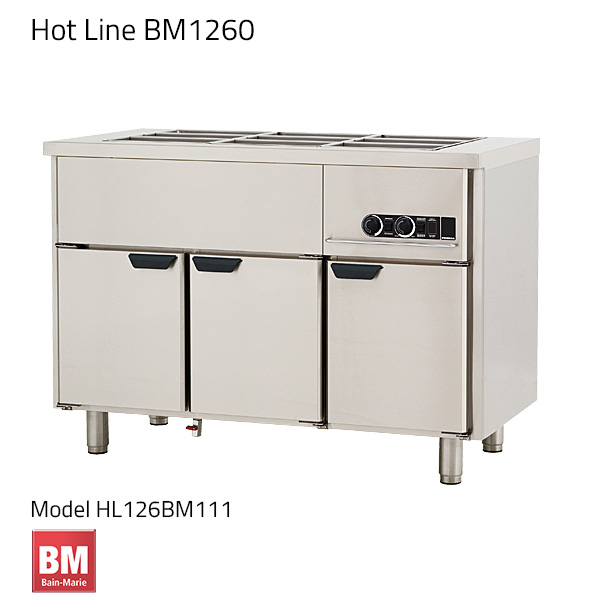

Porkka Hot Line Counters for Food Storage with Bain-Marie

Porkka Hot Line counters with temperature controlled Bain-Marie’s are designed to accept GN 1/1 containers or smaller multiple modules. They are ideal for food service areas.

The modular construction is versatile and allows a galley to be designed to operate to it’s maximum efficiency.

Didn’t find what You are looking for?

Do you want special configuration to fulfill your needs? Please, go to contact center page and send an e-mail to your local specialist.

CONTACT CENTER >

Description

Porkka Hot Line counters are made from the highest quality materials and components such as stainless steel grade AISI 304 internally and externally, the equipment is easy to clean and built to last, features include:

• Flexible modular construction
• Low life cycle impact
• Simple to operate and easy to use
• Easy cleaning and maintenance
• Fan assisted air circulation for even temperature throughout the cabinet

Features

• Exterior/Interior finish in stainless steel grade AISI 304
• Insulation with high density HCF free polyurethane
• Top plate with seamless integrated GN1/1 dimensioned Bain-Marie with a depth of 207 mm
• Divider frame GN1/1 for Bain-Marie, designed to accept multiples of smaller containers sizes
• Drain with valve for Bain-Marie
• Thermostatic controlled, high efficient air forced heating cassette(s) for under-storage area
• Door(s) equipped with handle, magnetic gasket and heavy duty hinges
• 1 pc GN 1/1 dimensioned, powder coated, steel wire shelf, adjustable in increments of 70mm (per door section)
• Stainless steel legs, height adjustable (-5mm to +65mm)

Optional Features

• Gantry with sneeze proof canopy, optional fitted with infrared heating lamps
• Step-less power adjustment for infrared heating lamps
• Serve-over gantry with a curved, tempered glass front. Optional fitted with infrared heating lamps
• Plumbed tap water filling system for the Bain-Marie
• Stainless steel cover plate GN 1/1 for Bain-Marie
• Module(s) with 2 or 3 pcs GN1/1 dimensioned drawers, magnetic gasket and telescopic runners
• Divider frame GN1/1 for drawer, designed to accept multiples of smaller containers sizes
• Extra shelves as required
• Shorter, adjustable stainless steel legs for a counter height of 850mm

Technical Specification

HL-BM 860 HL-BM 1260 HL-BM 1660
Temperature Range cupboard +30…+75 °C +30…+75 °C +30…+75 °C
Temperature Range Bain-Marie +30…+90 °C +30…+90 °C +30…+90 °C
Width (mm) 860 1260 1660
Depth (mm) 650 650 650
Height (mm) 900 900 900
Height with short legs (mm) 850 850 850
Bain-Marie (size) 2 x GN 1/1 3 x GN 1/1 4 x GN 1/1
Gross weight (kg) 80 110 140
Connection power (kw) 1.4 1.95 2.8
Voltage 230V/50Hz 230V/50Hz 230V/50Hz

Available Modules

BM Bain-Marie (+30…+90°C), cupboard (+30…+75°C)
Module 0 Cupboard without a door or drawer, open neutral section
Module 1 Module with solid door and 2 shelves
Module 2 2 telescopic drawers to accept GN containers up to 150 mm deep
Module 3 3 telescopic drawers to accept 2 x GN containers up to 100 mm deep and 1 x 65 mm deep

Brochures

 Porkka Counters (PDF)
