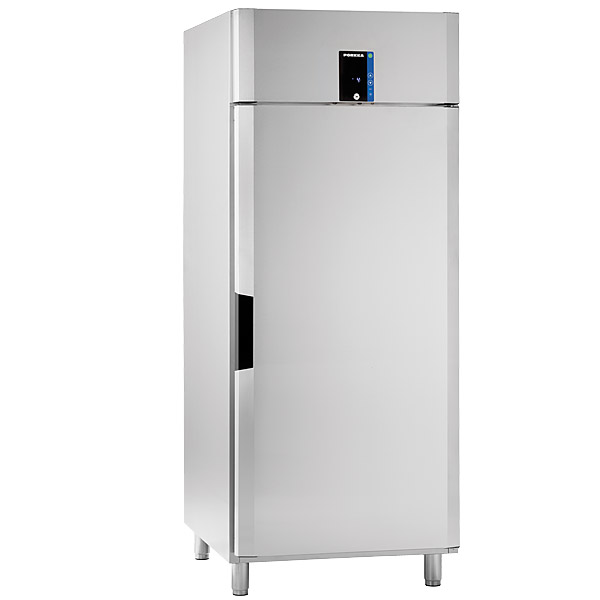

Porkka Inventus F8 freezer cabinet

Energy efficiency class B
Energy efficiency index 30,2
Energy Consumption (kWh/Year) 1162
Gross/Net Volume EN16825 (litres) 619/491
Climate class 4
Operating Temperature -26…-15 °C
Amb. Temperature +16…+43 °C
Width (mm) 850
Depth (mm) 750
Height (mm) 2100
Height with castors (mm) 2070
Internal width (mm) 654
Internal depth (mm) 555
Internal height (mm) 1485
Shelves (pcs) 3 + 1
Size of the shelves (width x depth mm) 651 x 540
Gross/Net weight (kg) 162/152
Connection power plug-in and CC (kw) 0.5
Voltage 230V/50Hz
Defrost Hot gas
Refrigerant (g)/GWP 90 g (R290G, WP 3)

Description

Porkka’s ultra energy efficient commercial cabinets for chilled and frozen products for use in professional kitchens and food preparation and storage areas. Always thinking about our customers and the environment, our design features include increased insulation and the most efficient components available, this has allowed us to develop a range of cabinets that are amongst the most economical to operate in the world today.

Designed for use in professional kitchens and food preparation areas, the chassis size Inventus 8 is designed to accept GN 2/1 shelves or containers in the width.

Features

• Digital temperature display with built-in microprocessor controller
• Keyboard tamper protection
• Recording of max./min. temperature
• Visual high/low-temperature alarm
• Door open alarm
• Probe failure alarm
• Condenser cleaning information/alarm
• TTL-Mod Bus communication port (RS 485 with optional converter)
• External and interior finish in stainless steel grade AISI 304
• Insulation with high-density HFC free polyurethane
• 4 pcs stainless steel wire shelves adjustable in increments of 56 mm
• Door equipped with lock, magnetic gasket and heavy-duty spring hinges, 90° dwell open
• Highly efficient machinery with easy to clean filter
• Efficient, environmentally friendly, HFC free refrigerant R290
• Stainless steel legs, height adjustable from 130 mm to 205 mm
• Electrical supply 230V/50 Hz
• Potential free remote alarm connection

Optional equipment

• Also available for connection to a central cooling refrigeration system
• Extra shelves as required
• Bakery shelves
• 4 castors, 2 of which are lockable
• Shorter stainless steel legs, adjustable from 70 mm to 105 mm
• Foot pedal door opener

Inventus Downloads

 Porkka_Inventus_Brochure_092018_ENG
