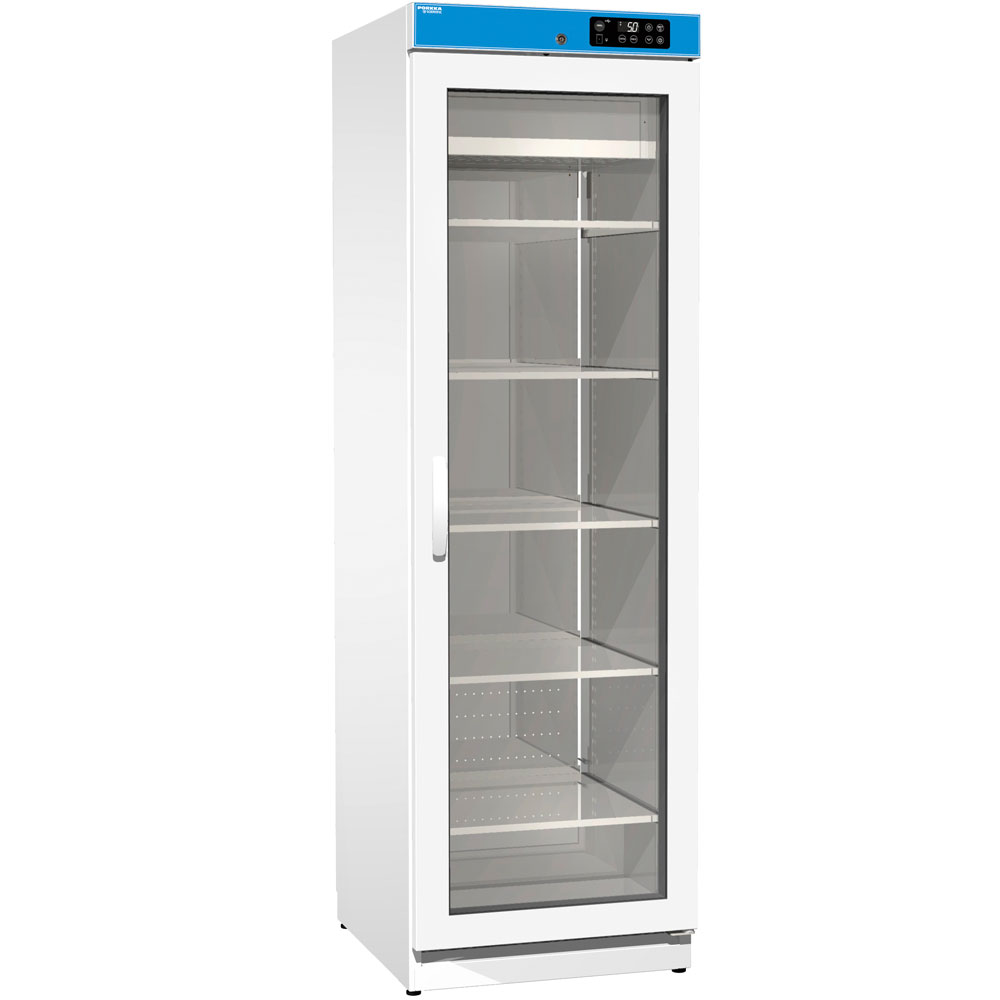

Porkka MEDLAB SAVE C400 GD Spark Proof Laboratory Refrigerator

Technical data

External dimensions: Width (mm) 610
Note! ** Depth (mm) 746
• Height adjustable thumb screw legs (standard) Height (mm) 2000
• Height adjustable stainless steel legs Height (mm) 2150
• Castors (lockable front castors) Height  (mm) 2095
Internal dimensions: Width (mm) 498
Depth (mm) 538
Front / back Height (mm) 1533 / 1387
Volume (measured on a stainless-steel shelf according to DIN standard) Net (litres) 346
Gross (litres) 451
Weight Net (kg) 102
Package weight Gross (kg) 112
Package size Width (mm) 700
Depth (mm) 810
Height adjustable thumb screw legs Height (mm) 2140
Height adjustable stainless steel legs Height (mm) 2300
Sound level measured at the distance of 1m and from the height of 1.6 m dB 44
Ambient temperature ºC +5…+25
Operating temperature ºC +2…+15
Temperature accuracy ºC DIN58345
Refrigerant R600a (g) 80
Connection Power W 75
Fuse Slow (A) 10
Voltage V 230/50/60 Hz
Defrost 1. Air 2. Hot gas 3. Electric 1 Automatic


MEDLAB SAVE 400 spark-proof pharmaceutical and laboratory refrigerators and freezers

MEDLAB SAVE 400 MED SAVE 400 cabinet series has a wide selection of refrigeration, freezing and combination cabinets. The products are suitable for storing medications and test samples, as well as for storage of various substances and materials, which require a steady storage temperature and spark protection. The MEDLAB SAVE 400 refrigeration cabinet is also available with a glass door.

MEDLAB SAVE 400 -MED SAVE 400 cabinet series is suitable for drug storage in hospitals and pharmacies. The standard version has a number of features that improve drug storage and product safety. The interior surfaces of the MEDLAB SAVE 400 cabinets are easy to clean, and the cabinets are spark-proof, making them ideal for laboratory use.

The features of MED SAVE 400 cabinet series are in compliance with the requirements of the future, and the collection is in compliance with the requirements of the new F-Gas Regulation (No 517/2014).

The MEDLAB SAVE 400 series has paid special attention to the safe storing of the products, and the storage temperatures are in compliance with the requirements of DIN 58 345. All the cabinets come with anti-freeze protection (C-models) and potential-free alarm tip information for the building’s control system. The cabinets have an internal functioning control system, which will alert visually on the screen, if necessary, and acoustically with the alarm tone of all the deviations related to the use or operation of the cabinet..

In the MED SAVE 400 cabinet series, ease of use means a clear and easy-to-use control unit, stainless steel pull-out shelves with flat surfaces that are easy to clean, a low noise level and low energy consumption.


Stainless steel shelf or 1/1 glass shelf, width 495 mm, depth 330 mm (amount standard/maximum)

(pcs) 5

SAVE Controller

MED SAVE Control unit LED numerical display

All cabinet models feature a clear and easy-to-use MED SAVE control unit. All main functions can be performed with one push button: checking of the minimum and maximum temperature, continuous on/off recording of temperature, continuous recording of temperature on a USB flash drive.

  • continuous temperature recording
  • USB port for data reading
  • big LED number temperature display
  • complies with the requirements DIN 58345 set to storage of pharmaceuticals
  • complies with the requirements DIN 58371 set to storage of red cell preparations
  • products are available with optional battery backup and anti-freeze protection systems (DIN accessory package)
  • temperature monitor during defrost
  • Versatile features and alarms of MED SAVE control unit are displayed on a large LED screen. If necessary, an acoustic alarm will also produce a sound signal. Potential-free alarm information is transferred to real estate supervision via a control unit. All possible alarms are stored in the memory of the control unit with precise time and alarm information


  • Excellent temperature uniformity (± 1°C) measured with a weight of 25 g (DIN 58345)
  • Low noise level, under 45 dB(A)
  • Bacteria-free automatic evaporation for condensation water
  • Bacterial-free door handle
  • Control unit with clear numeric display for temperature and other functions
  • Real time temperature recording and USB port for data reading
  • Key lock on the control unit
  • Recording of maximum and minimum temperature
  • Visual and audible high/low temperature alarm
  • Temperature monitor during defrost
  • Door switch for fan control and door open-alarms
  • Probe failure alarm
  • Anti-freeze function (C models)
  • Readiness for RS485 adapter for computer connection
  • Potential-free alarm terminal strip
  • Ability to connect the device to external property control
  • ø 8 mm sleeved access port for additional probe
  • 50 ml bottle for temperature sensor inside the cabinet (not together with 8 shelves)
  • fan assisted air distribution
  • Molded eco-friendly polyurethane insulated frame. The insulation thickness is 55 mm.
  • External finish has a white polyester coated sheet steel (visible finish)
  • Interior finish in stainless steel
  • Stainless steel shelve which are adjustable in increments of 30 mm or drawer + stainless steel shelf combination
  • Abloy lock is placed in front panel for easy maintenance (Abloy Sentry key)
  • The self-closing door has a sturdy molded handle, magnetic seal, and durable hinges. The door remains open at a 90 degree angle
  • Automatic or manual defrost
  • Efficient, environmental friendly, energy saving refrigerant system R600a or R290
  • Electrical supply 230V / 50/60Hz


  • Stainless steel shelf
  • LED light (standard in GD models)
  • Lock alternatives: Assa, iLOQ, Ruko (Abloy as a standard)
  • 12-hour battery backup for control unit’s power failure alarm and temperature recording (DIN 58345 requirement)
